Description
Brand - ZEN
Item Number - SP210 ZEN
Category - Stainless Steel Pillow Blocks (SP)
Inner Diameter (d) mm - 50

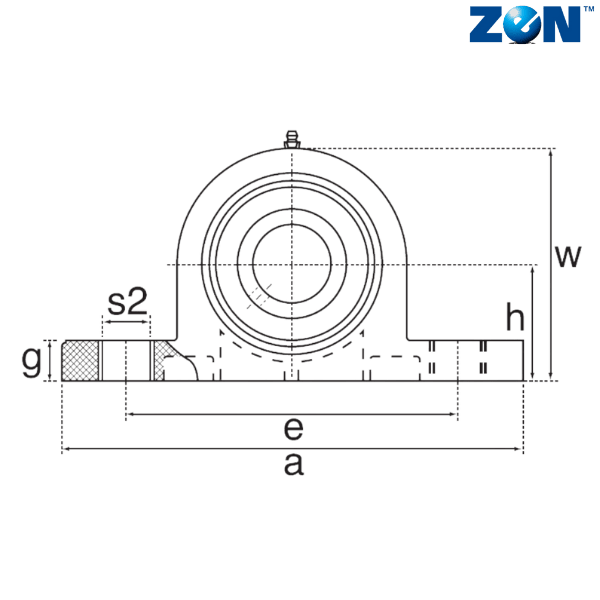

Base to Center Height (h) mm - 57.2
Overall Length (a) mm - 206
Bolt Center to Center Length (e) mm - 159

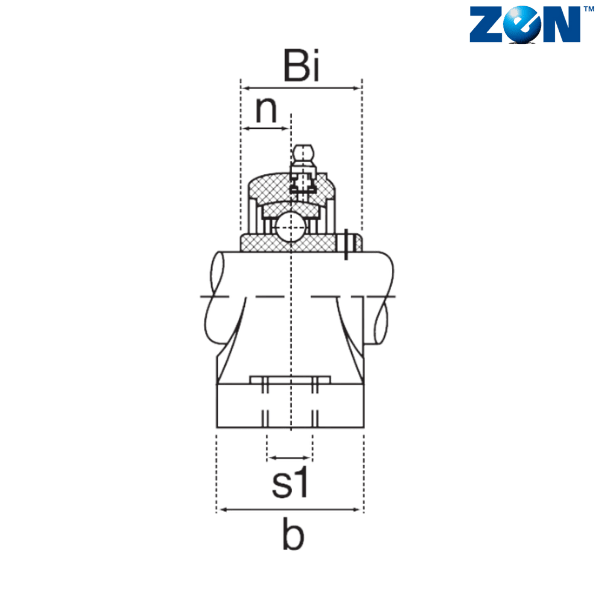

b (mm) - 60
S1 (mm) - 20
S2 (mm) - 23
g (mm) - 21
Overall Height (w) mm - 113
Weight (kg) - 2.38
Bearing - SUC210

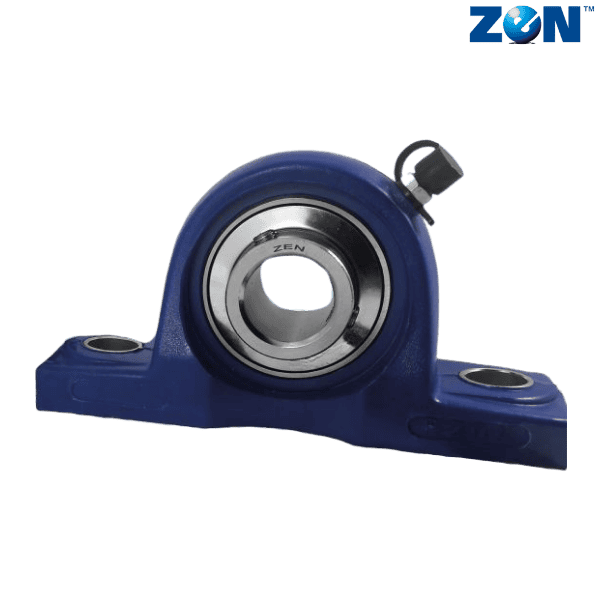

** Images are for representation purposes only
