Description
Brand - ZEN
Item Number - SP209 ZEN
Category - Stainless Steel Pillow Blocks (SP)

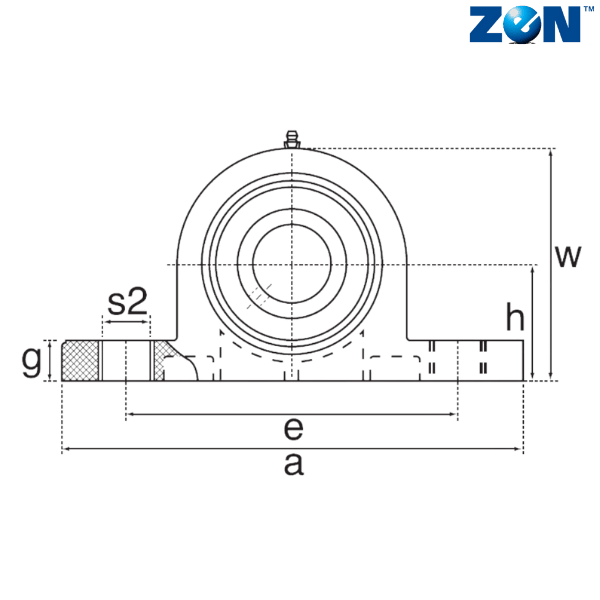

Inner Diameter (d) mm - 45
Base to Center Height (h) mm - 54
Overall Length (a) mm - 190
Bolt Center to Center Length (e) mm - 146

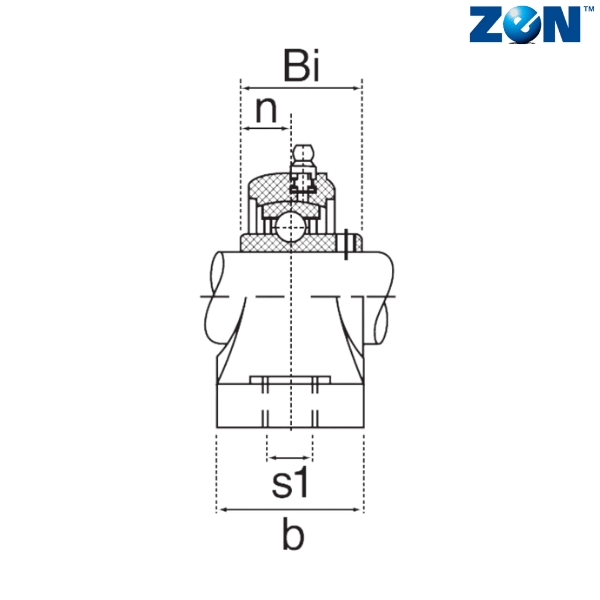

b (mm) - 54
S1 (mm) - 17
S2 (mm) - 20
g (mm) - 20
Overall Height (w) mm - 106
Weight (kg) - 2.09
Bearing - SUC209

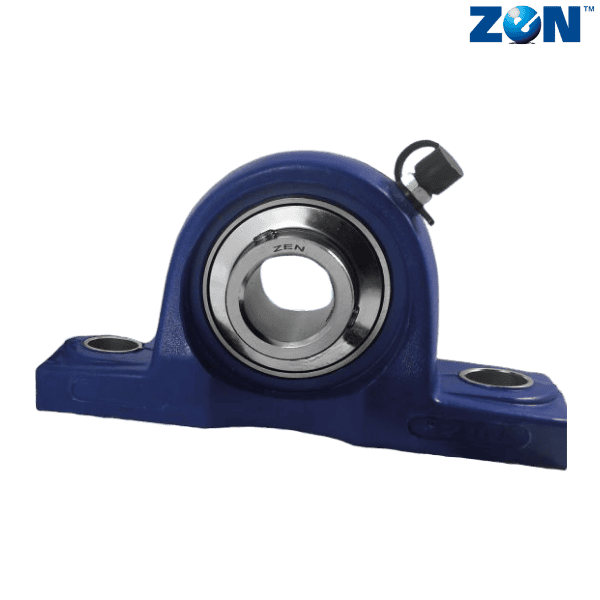

** Images are for representation purposes only
