Description
Brand - ZEN
Item Number - SP208 ZEN
Category - Stainless Steel Pillow Blocks (SP)

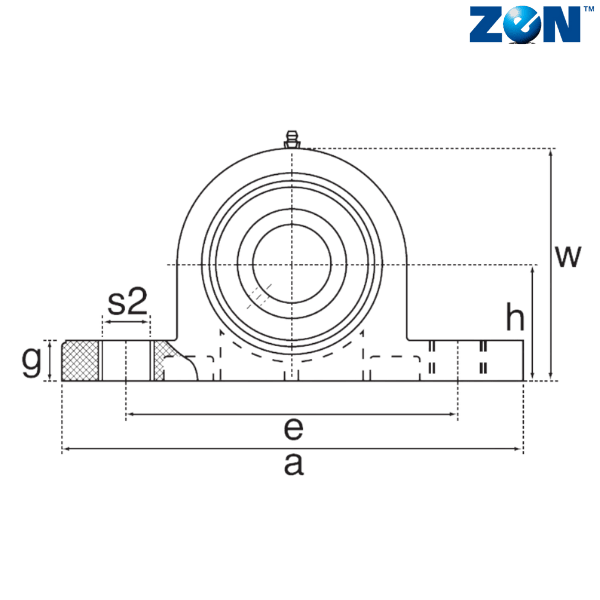

Inner Diameter (d) mm - 40
Base to Center Height (h) mm - 49.2
Overall Length (a) mm - 184
Bolt Center to Center Length (e) mm - 137
b (mm) - 54
S1 (mm) - 17
S2 (mm) - 20
g (mm) - 18
Overall Height (w) mm - 100
Weight (kg) - 1.82
Bearing - SUC208

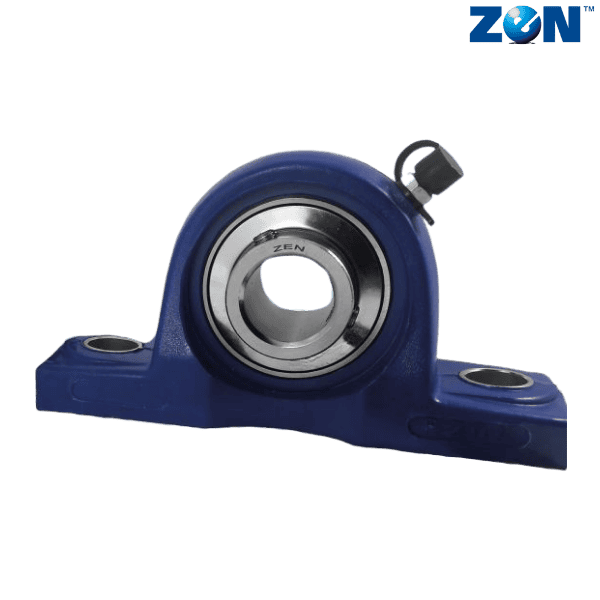

** Images are for representation purposes only
