Description

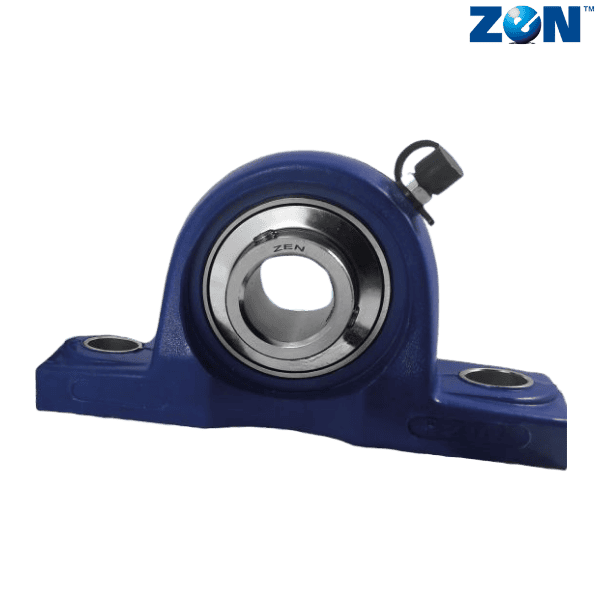

Brand - ZEN
Item Number - SP207 ZEN
Category - Stainless Steel Pillow Blocks (SP)

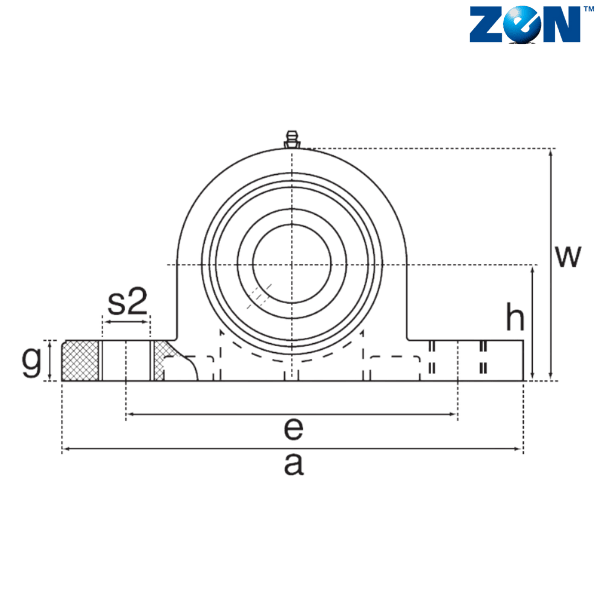

Inner Diameter (d) mm - 35
Base to Center Height (h) mm - 47.6
Overall Length (a) mm - 167
Bolt Center to Center Length (e) mm - 127

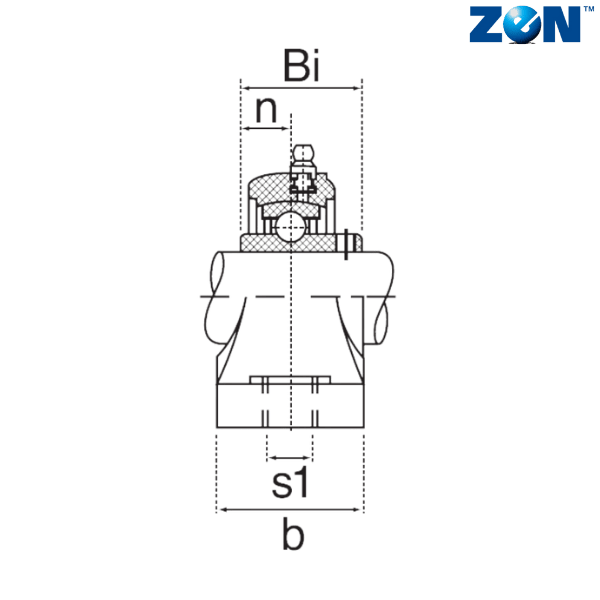

b (mm) - 48
S1 (mm) - 17
S2 (mm) - 20
g (mm) - 18
Overall Height (w) mm - 93
Weight (kg) - 1.42
Bearing - SUC207
** Images are for representation purposes only
