Description
Brand - ZEN
Item Number - SP206 ZEN
Category - Stainless Steel Pillow Blocks (SP)

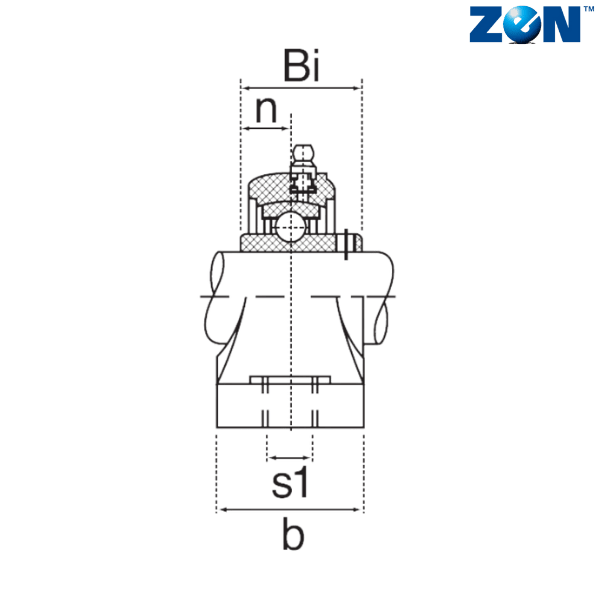

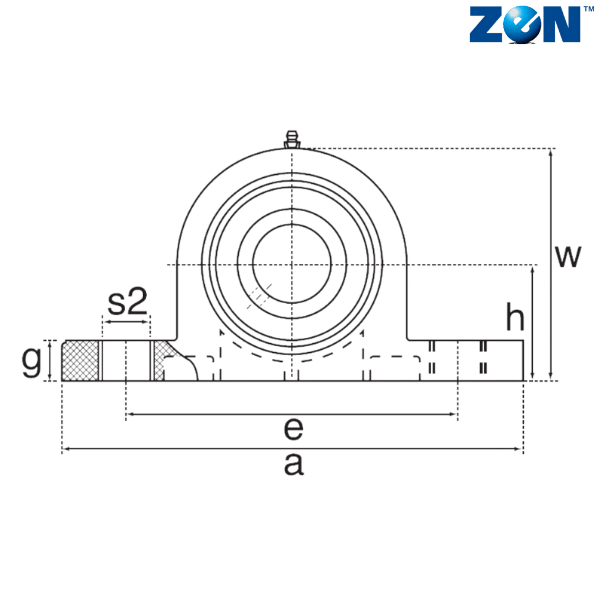

Inner Diameter (d) mm - 30
Base to Center Height (h) mm - 42.9
Overall Length (a) mm - 163
Bolt Center to Center Length (e) mm - 121
b (mm) - 48
S1 (mm) - 17
S2 (mm) - 20
g (mm) - 17
Overall Height (w) mm - 82
Weight (kg) - 1.29
Bearing - SUC206

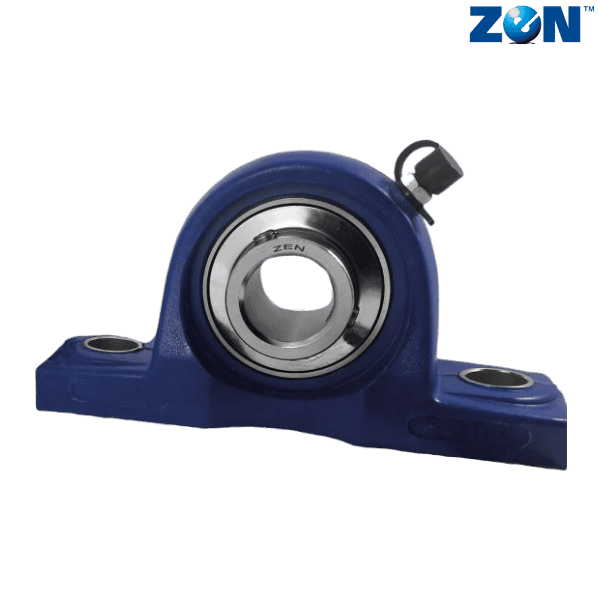

** Images are for representation purposes only
