Description

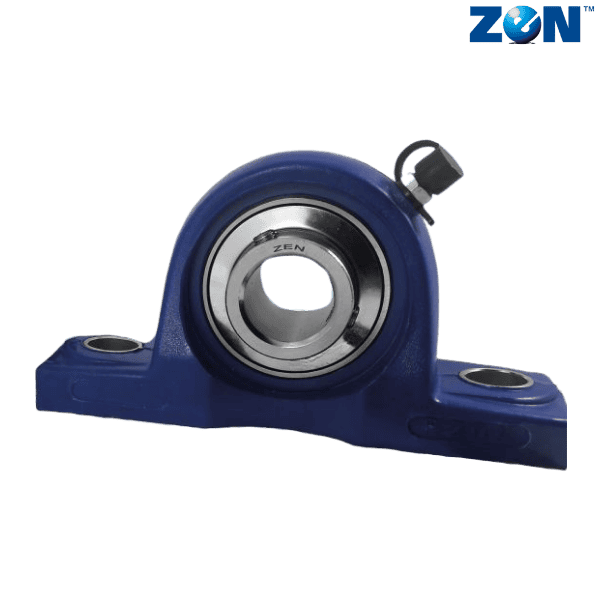

Brand - ZEN
Item Number - SP205 ZEN
Category - Stainless Steel Pillow Blocks (SP)

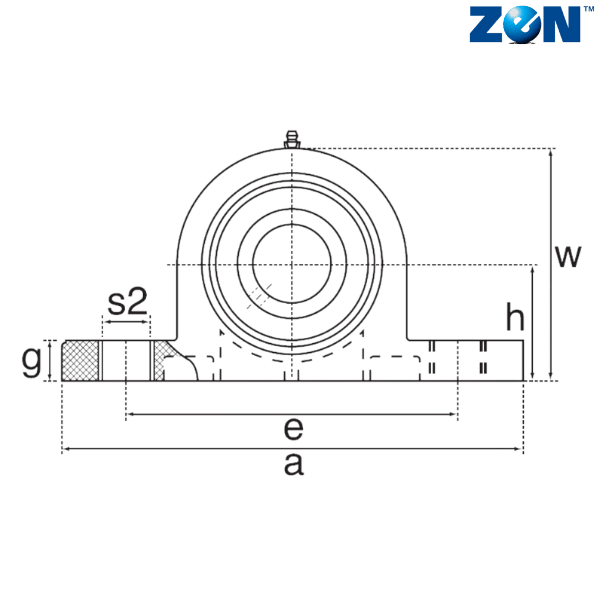

Inner Diameter (d) mm - 25
Base to Center Height (h) mm - 36.5
Overall Length (a) mm - 140
Bolt Center to Center Length (e) mm - 105

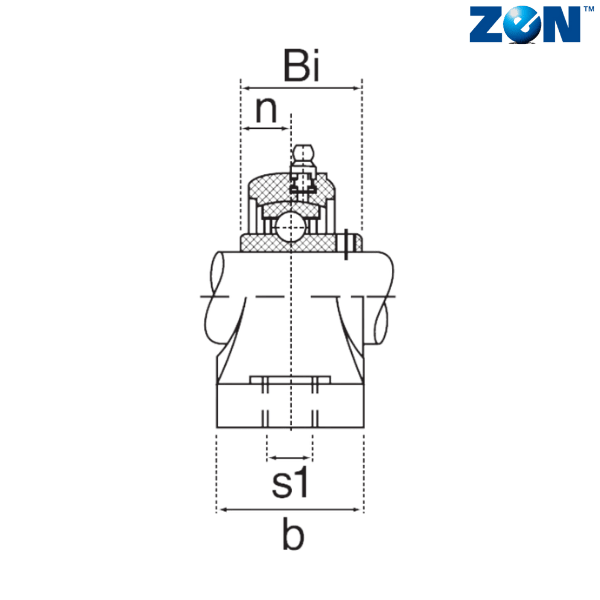

b (mm) - 37
S1 (mm) - 13
S2 (mm) - 19
g (mm) - 15
Overall Height (w) mm - 71
Weight (kg) - 0.74
Bearing - SUC205
** Images are for representation purposes only
