Description
Brand - ZEN
Item Number - SP204 ZEN
Category - Stainless Steel Pillow Blocks (SP)

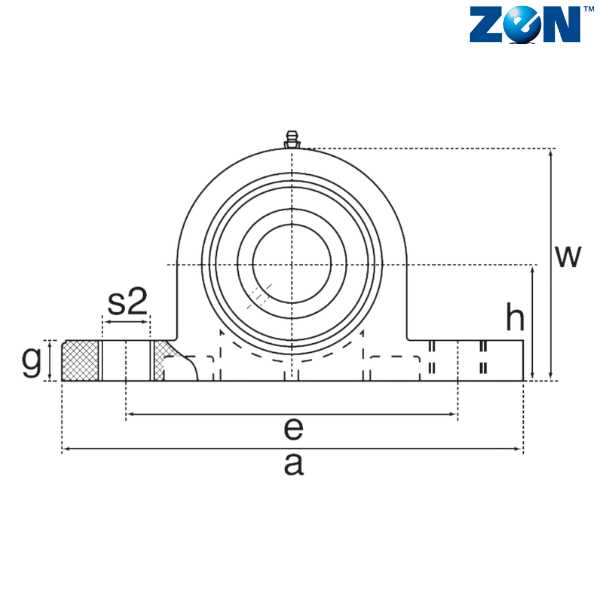

Inner Diameter (d) mm - 20
Base to Center Height (h) mm - 33.3
Overall Length (a) mm - 125
Bolt Center to Center Length (e) mm - 95

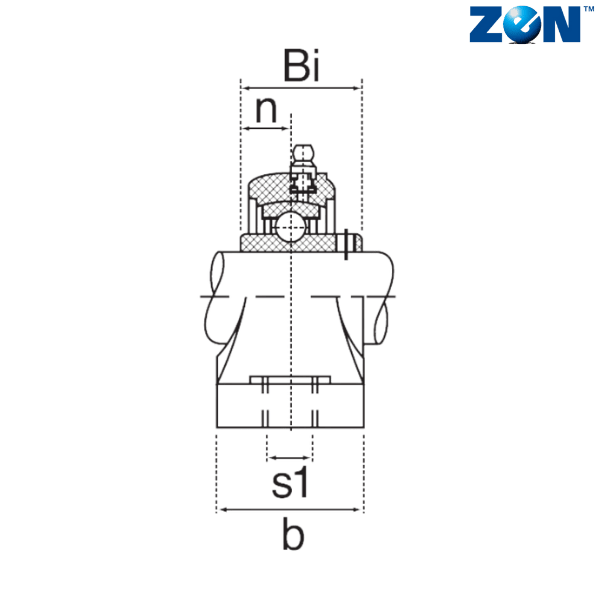

b (mm) - 37
S1 (mm) - 13
S2 (mm) - 19
g (mm) - 14
Overall Height (w) mm - 63.5
Weight (kg) - 0.69
Bearing - SUC204

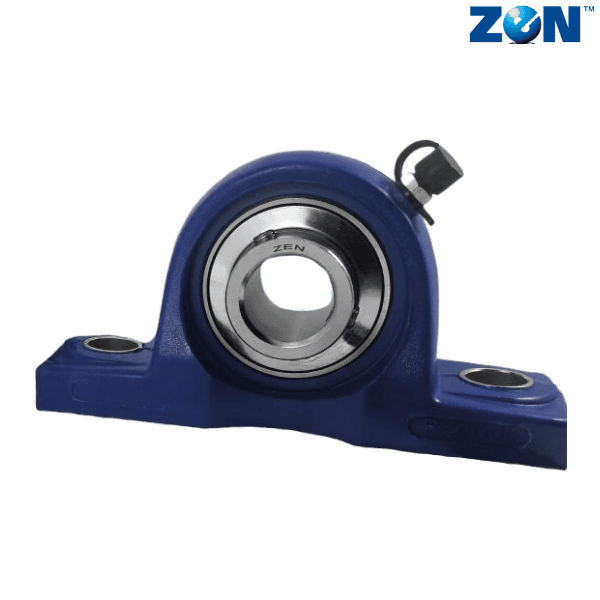

** Images are for representation purposes only
