SP1629-17 SILVERTHIN

Brand - SILVERTHIN
Item Number - SP1629-17 SILVERTHIN
Category - Mating Pinions for SK6 Series Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :

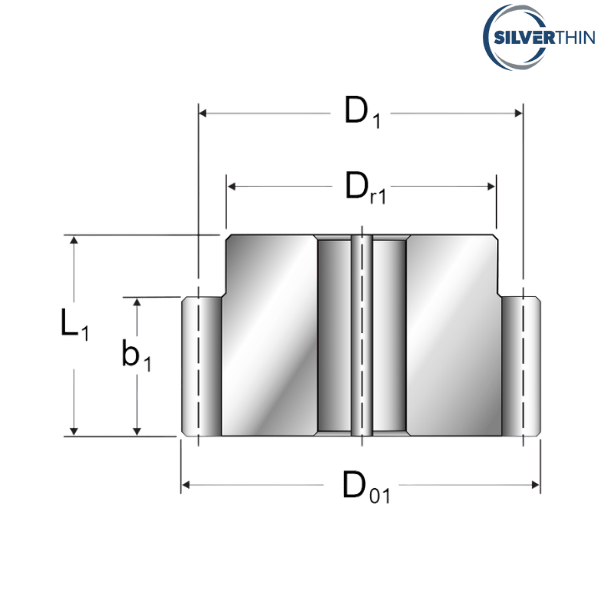

Length of Pinion (L1) - 2.88 inch
Pitch Diameter (D1) - 4.25 inch
Outside Diameter (Do1) - 4.65 inch
Hub Diameter (Dr1) - 3.63 inch

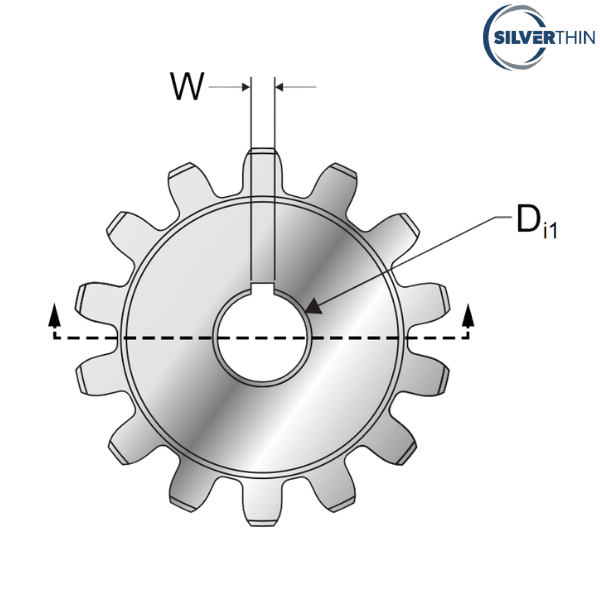

Stock Bore (Di1) - 1 inch
Square Key Size, Nominal (w) - 0.25 inch
Approximate Weight - 10 lbs
Tooth Form - Stub involute spur gear
Number of Teeth (z1) - 17 pcs.
Diametral Pitch (Pd) - 4 inch
Face Width (b1) - 2 inch
Compatible Part Numbers - SK6-16 through SK6-29

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 4.54 kg

♦ ♦ Images are for representation purposes only
