SP145324-17 SILVERTHIN

Brand - SILVERTHIN
Item Number - SP145324-17 SILVERTHIN
Category - Mating Pinions for SK6 Series Slewing Ring Bearing

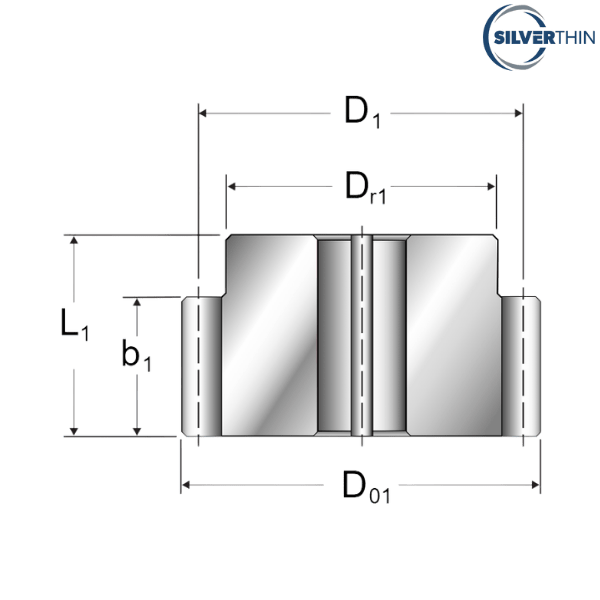

Principal Dimensions & Load Ratings (Imperial) :
Length of Pinion (L1) - 2.88 inch
Pitch Diameter (D1) - 3.4 inch
Outside Diameter (Do1) - 3.686 inch
Hub Diameter (Dr1) - 2.806 inch

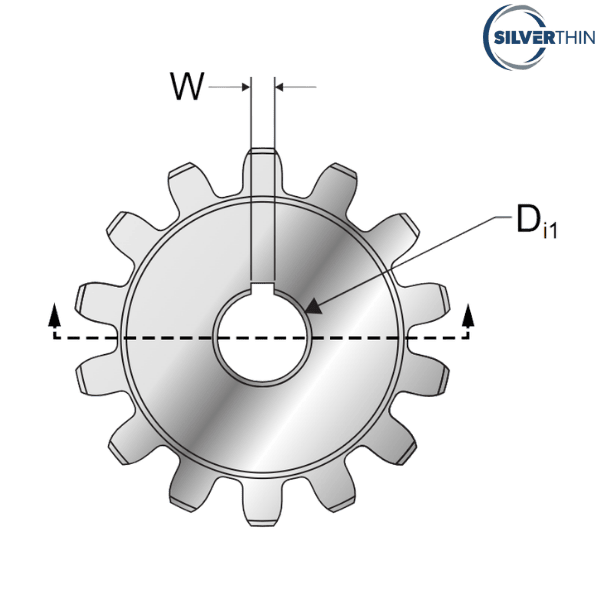

Stock Bore (Di1) - 1 inch
Square Key Size, Nominal (w) - 0.25 inch
Approximate Weight - 6.6 lbs
Tooth Form - Fellows stub involute spur gear
Number of Teeth (z1) - 17 pcs.
Diametral Pitch (Pd) - 0.71 inch
Face Width (b1) - 2.25 inch
Compatible Part Numbers - STE-145 through STE-324

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 2.99 kg

♦ ♦ Images are for representation purposes only
