Description
Brand - ZEN
Item Number - SMB15 ZEN
Category - Stainless Steel Washers

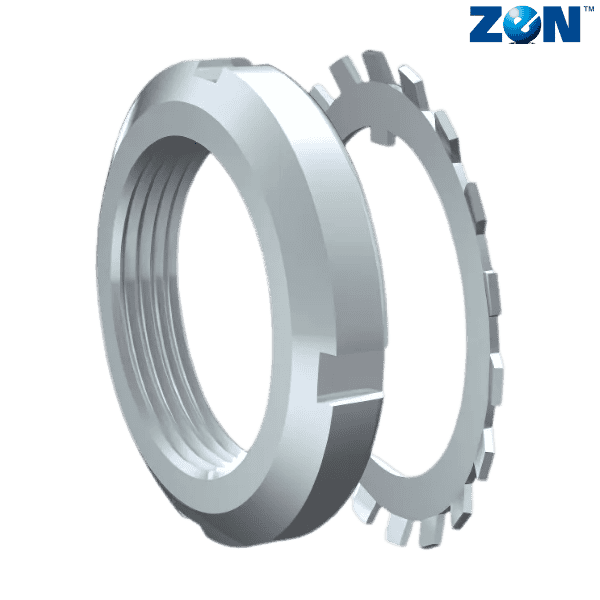

Compatible Lock Nut - SKM15
G - M 75 x 2
d1 (mm) - 90
d3 (mm) - 98
Width (B) mm - 13
b (mm) - 8
h (mm) - 3.5
Material - AISI201
** Images are for representation purposes only
