Description
Brand - ZEN
Item Number - SLR205-NPP ZEN
Category - LR Series (Track Rollers)
Inner Ring Dimension (d) mm - 25
Outer Ring Dimension (D) mm - 62
Width (B) mm - 15
Radius (rs) mm - 1
Dynamic Load Rating (N) - 10000
Static Load Rating (N) - 5680
Limiting Speed (NPP and NPPU) - 7
Weight (kg) - 0.23
Radial Play - 0.005-0.02
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

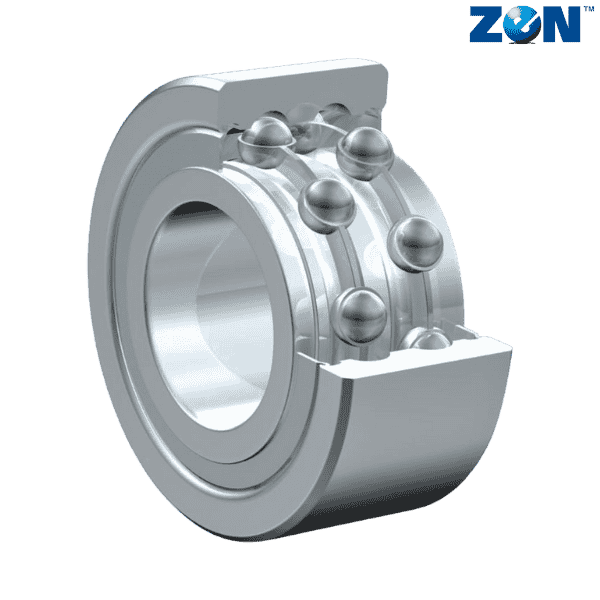

** Images are for representation purposes only
