SL192330-TB INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - SL192330-TB INA

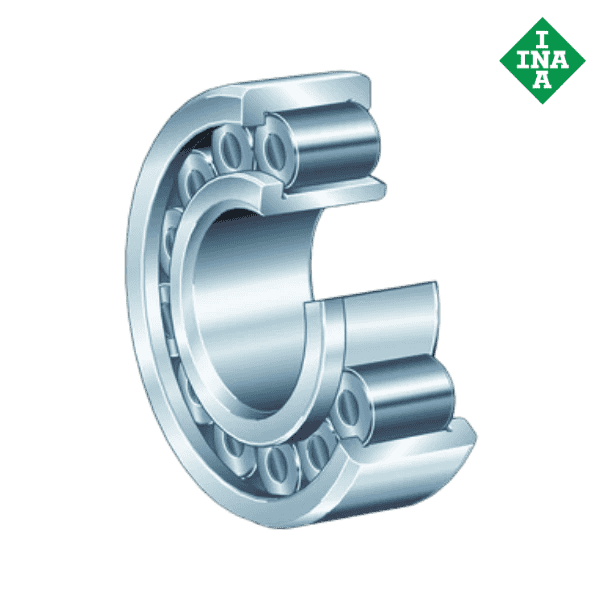

Category - Semi-Locating, Single Row Full Complement Cylindrical Roller Bearing
Weight (Kg) - 42.1

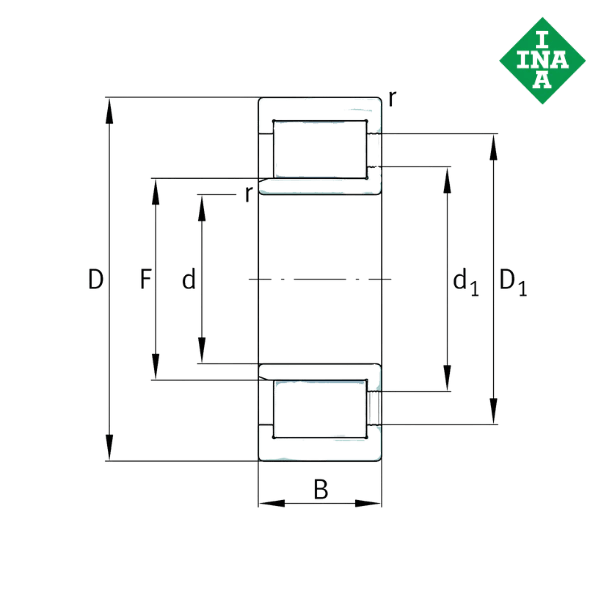

Inner Diameter (d) mm - 150
Outer Diameter (D) mm - 320
Inner Width (B) mm - 108
Minimum Chamfer Dimension (r) mm - 4
Axial Displacement (s) mm - 7
Raceway Diameter Inner Ring (F) mm - 182.49
Shoulder Diameter Inner Ring (d1) mm - 203.3
Shoulder Diameter Outer Ring (D1) mm - 263.5
Basic Dynamic Load Rating (Cr) kN - 1680
Basic Static Load Rating (C0r) kN - 1900
Fatigue Limit Load (Cur) kN - 265
Limiting Speed (nG) rpm - 1380
Reference Speed (nB) rpm - 840

** Images are for representaion purposes only
