Description
Brand - INA
Item Number - SL185038-TB INA
Also known as - 572440140000
EAN - 4054366757937
Inner (d) MM - 190
Outer (D) MM - 290
Width (B) MM - 136
Inner (d) Inch - 7.4803
Outer (D) Inch - 11.4173
Width (B) Inch - 5.3543
Weight (kg) - 31.5
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

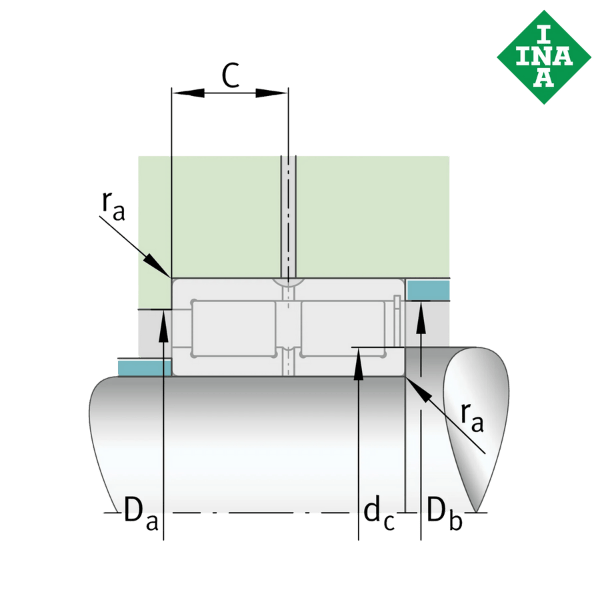

** Images are for representation purposes only
