Description
Brand - INA
Item Number - SL185032-A-BR-C3-2S INA
Also known as - 0055222770034 NNCF5032V/C3 SL185032-A-BR-C3

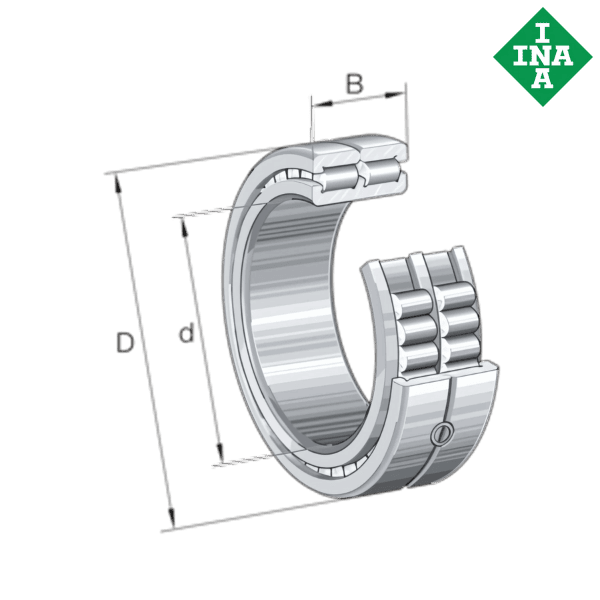

Category - Cylindrical Roller Bearing Double Row

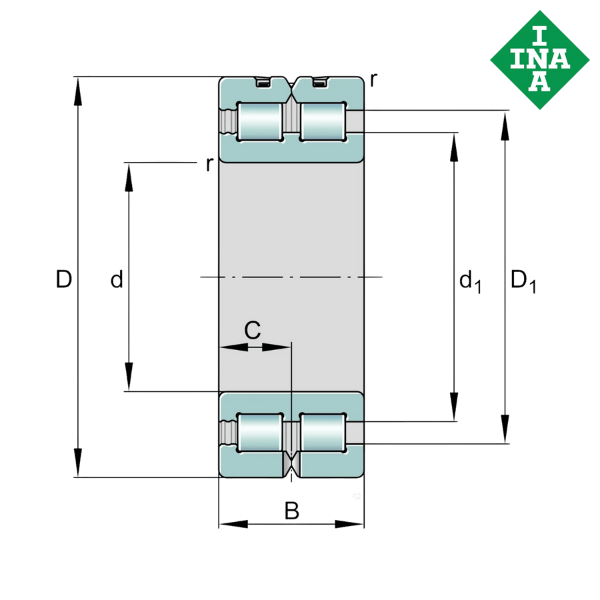

Inner (d) MM - 160
Outer (D) MM - 240
Width (B) MM - 109
Inner (d) Inch - 6.2992
Outer (D) Inch - 9.4488
Width (B) Inch - 4.2913
Weight (kg) - 12.2
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - BR + 2S
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
** Images are for representation purposes only
