Description
Brand - INA
Item Number - SL183015-A-XL-C3 INA
Also known as - 0505385860030 NCF3015V/C3 SL183015-A-C3
Inner (d) MM - 75
Outer (D) MM - 115
Width (B) MM - 30
Inner (d) Inch - 2.9528
Outer (D) Inch - 4.5276
Width (B) Inch - 1.1811
Weight (kg) - 1.1
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

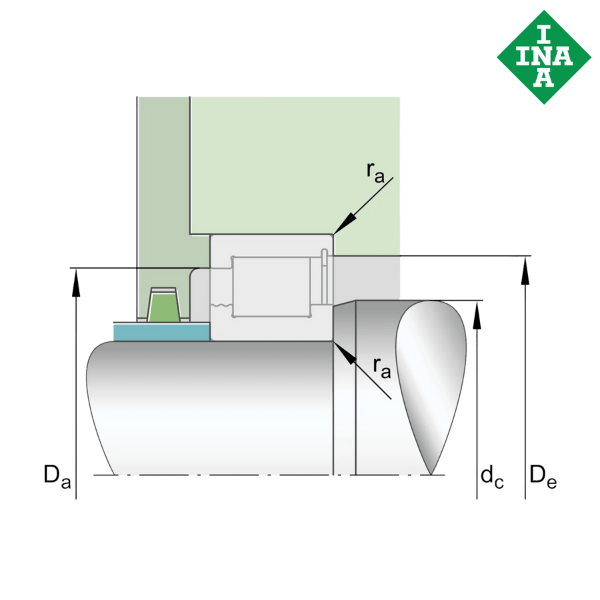

** Images are for representation purposes only
