Description
Brand - INA
Item Number - SL183014-A-XL-C3 INA
Also known as - 0505385430030 NCF3014V/C3 SL183014-A-C3
Inner (d) MM - 70
Outer (D) MM - 110
Width (B) MM - 30
Inner (d) Inch - 2.7559
Outer (D) Inch - 4.3307
Width (B) Inch - 1.1811
Weight (kg) - 1.05
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

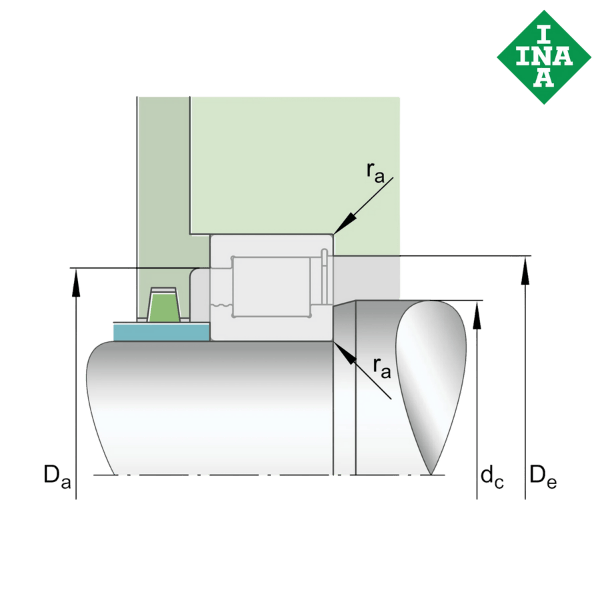

** Images are for representation purposes only
