Description
Brand - INA
Item Number - SL182936-B-XL-C4 INA
Also known as - 0508976670040 NCF2936V/C4 SL182936-B-C4
Inner (d) MM - 180
Outer (D) MM - 250
Width (B) MM - 42
Inner (d) Inch - 7.0866
Outer (D) Inch - 9.8425
Width (B) Inch - 1.6535
Weight (kg) - 6.25
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

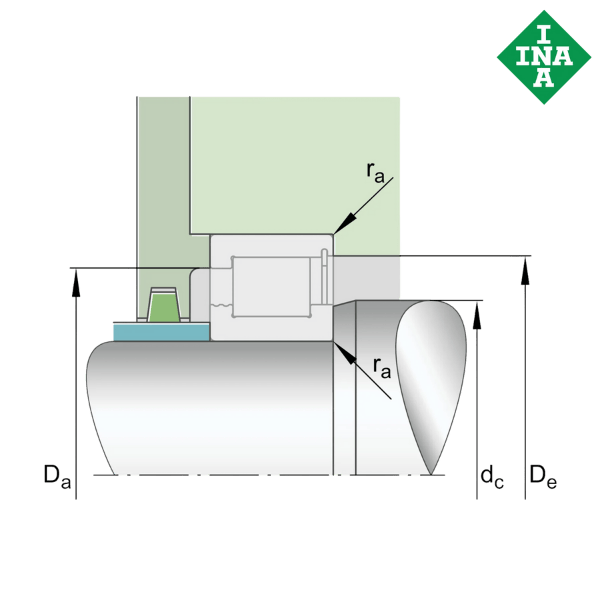

** Images are for representation purposes only
