Description
Brand - INA
Item Number - SL182917-B-XL-C3 INA
Also known as - 0502200630030 NCF2917V/C3 SL182917-B-C3
Inner (d) MM - 85
Outer (D) MM - 120
Width (B) MM - 22
Inner (d) Inch - 3.3465
Outer (D) Inch - 4.7244
Width (B) Inch - 0.8661
Weight (kg) - 0.81
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

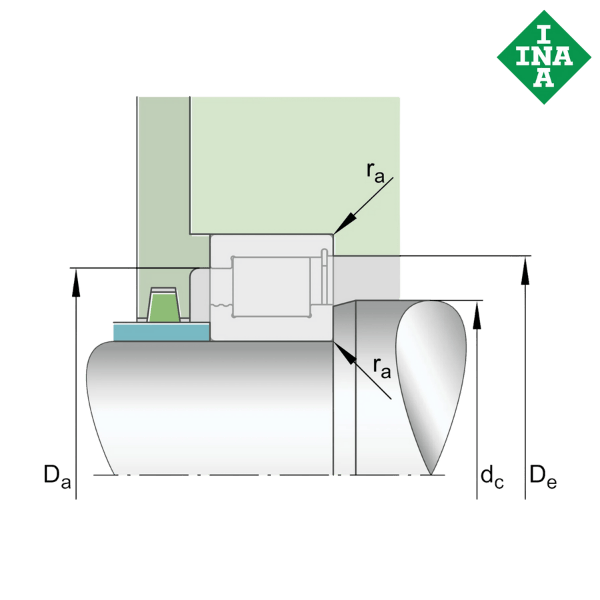

** Images are for representation purposes only
