Description
Brand - INA
Item Number - SL182224-A-C3 INA
Also known as - 0000582200030 NCF2224V/C3
Inner (d) MM - 120
Outer (D) MM - 215
Width (B) MM - 58
Inner (d) Inch - 4.7244
Outer (D) Inch - 8.4646
Width (B) Inch - 2.2835
Weight (kg) - 9.05
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

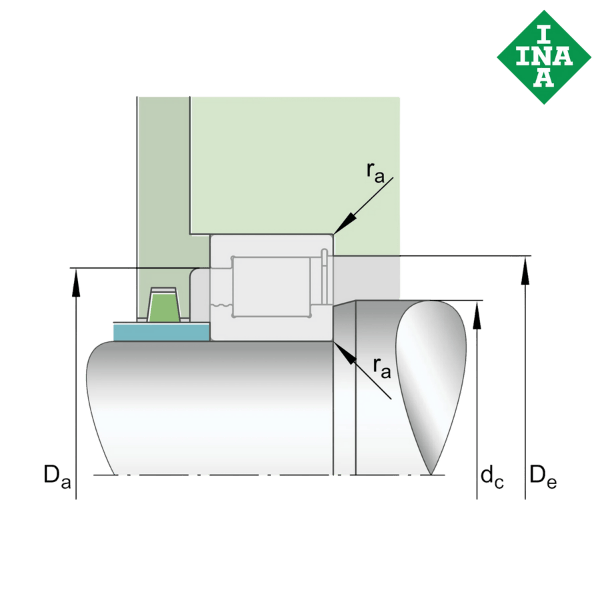

** Images are for representation purposes only
