Description
Brand - INA
Item Number - SL182205-A-XL-C3 INA
Also known as - 0501687460030 NCF2205V/C3 SL182205-A-C3
Inner (d) MM - 25
Outer (D) MM - 52
Width (B) MM - 18
Inner (d) Inch - 0.9843
Outer (D) Inch - 2.0472
Width (B) Inch - 0.7087
Weight (kg) - 0.18
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

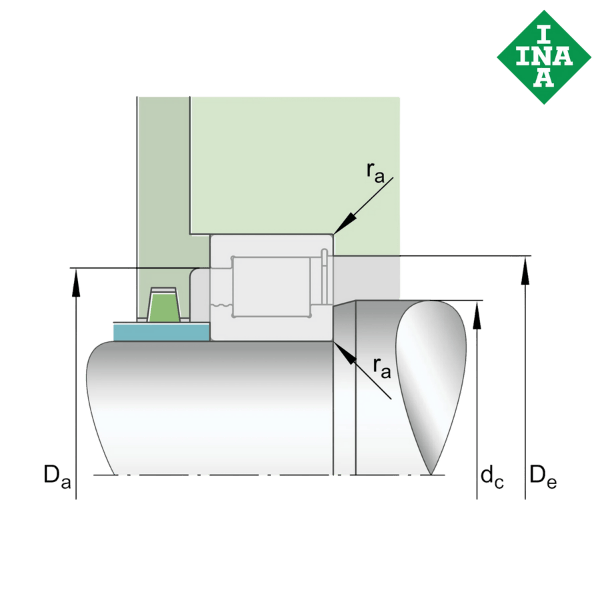

** Images are for representation purposes only
