Description
Brand - INA
Item Number - SL18-5005A C3 INA
Also known as - NNCF5005V/C3
Category - Cylindrical Roller Bearing Double Row
Inner (d) MM - 25
Outer (D) MM - 47
Width (B) MM - 30
Inner (d) Inch - 0.9843
Outer (D) Inch - 1.8504
Width (B) Inch - 1.1811
Weight (kg) - 0.23
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

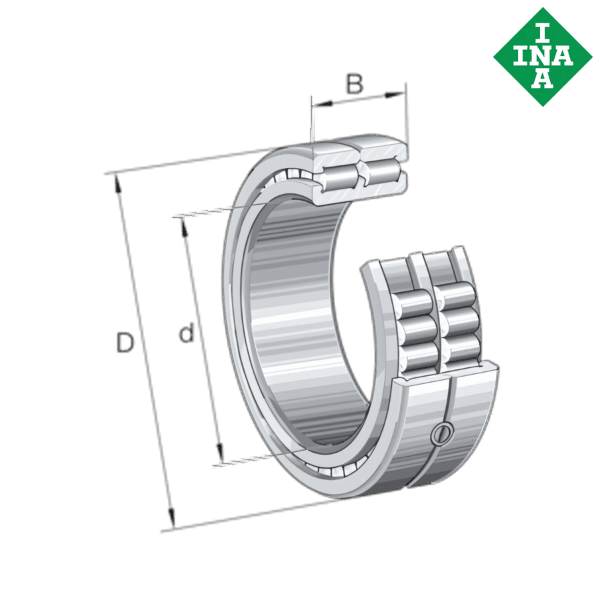

** Images are for representation purposes only
