Description
Brand - INA
Item Number - SL045026-PP-C4 INA
Also known as - NNF5026C-2LSV/C4
Category - Cylindrical Roller Bearing Double Row
Inner (d) MM - 130
Outer (D) MM - 200
Width (B) MM - 95
Weight (kg) - 10.5
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

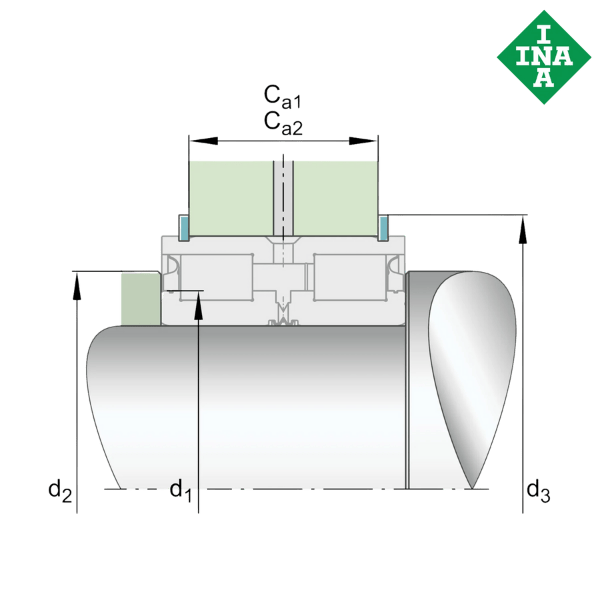

** Images are for representation purposes only
