Description
Brand - INA
Item Number - SL045022-PP-C5 INA
Also known as - NNF5022-2LSV/C5
Category - Cylindrical Roller Bearing Double Row
Inner (d) MM - 110
Outer (D) MM - 170
Width (B) MM - 79
Weight (kg) - 6.45
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C5 Internal Play (Higher than C4)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

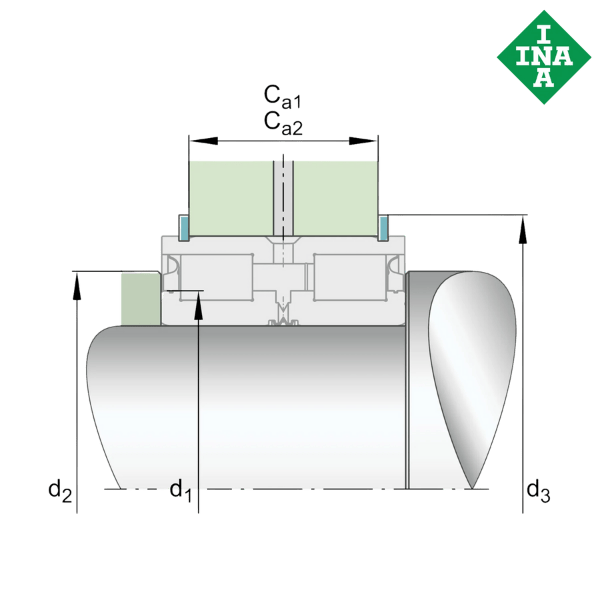

** Images are for representation purposes only
