Description
Brand - INA
Item Number - SL045016-D-PP-C3-GA22 INA
Also known as - 0898229516500 SL045016-D-PP-2NR-C3-GA22
Category - Cylindrical Roller Bearing Double Row
Inner (d) MM - 80
Outer (D) MM - 125
Width (B) MM - 60
Inner (d) Inch - 3.1496
Outer (D) Inch - 4.9213
Width (B) Inch - 2.3622
Weight (kg) - 2.71
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Grease -50°C / +120°C
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

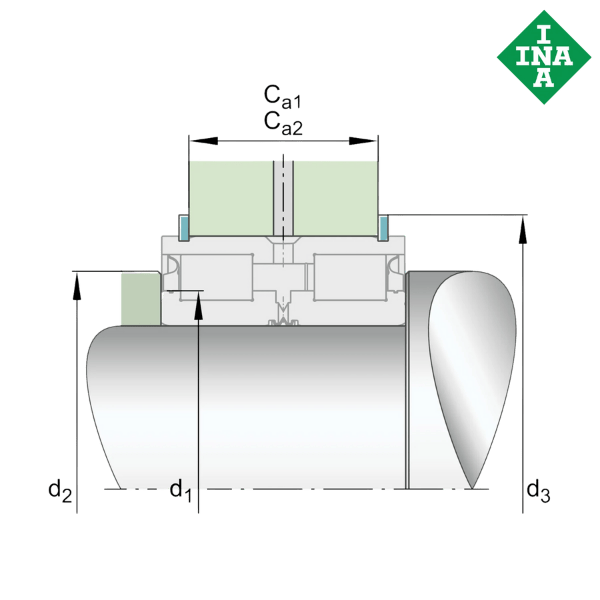

** Images are for representation purposes only
