Description
Brand - INA
Item Number - SL045015-PP-2NR INA
Also known as - 0014111870000 NNF5015ADA-2LSV
EAN - 4012802725278
Inner (d) MM - 75
Outer (D) MM - 115
Width (B) MM - 54
Inner (d) Inch - 2.9528
Outer (D) Inch - 4.5276
Width (B) Inch - 2.126
Weight (kg) - 1.96
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - 2R - 2 Snap Rings in O.D.
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

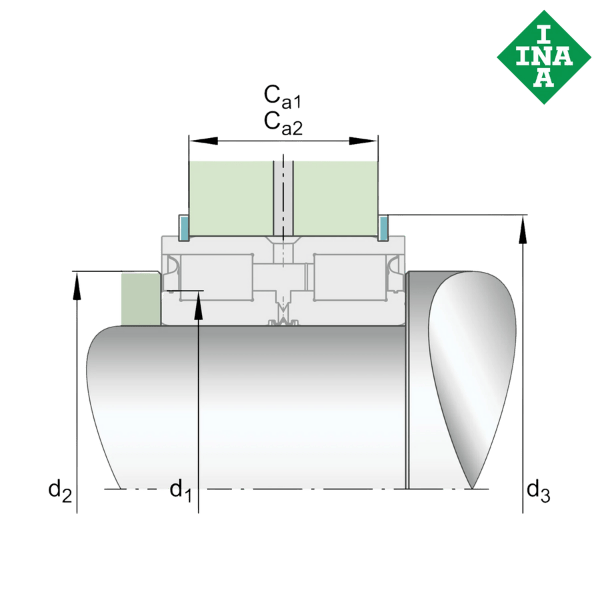

** Images are for representation purposes only
