Description
Brand - INA

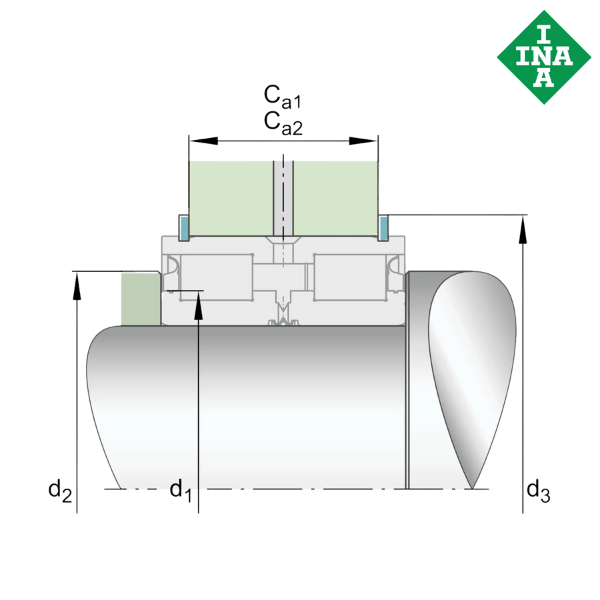

Item Number - SL045011-PP-C3 INA
Also known as - 0017227270030 NNF5011ADA-2LSV/C3
EAN - 4012802726886
Inner (d) MM - 55
Outer (D) MM - 90
Width (B) MM - 46
Inner (d) Inch - 2.1654
Outer (D) Inch - 3.5433
Width (B) Inch - 1.811
Weight (kg) - 1.13
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
** Images are for representation purposes only
