Description
Brand - INA
Item Number - SL045008-PP-C3 INA
Also known as - 0014775870030 NNF5008B.2LSV/C3
EAN - 4012802725711
Inner (d) MM - 40
Outer (D) MM - 68
Width (B) MM - 38
Inner (d) Inch - 1.5748
Outer (D) Inch - 2.6772
Width (B) Inch - 1.4961
Weight (kg) - 0.5286
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

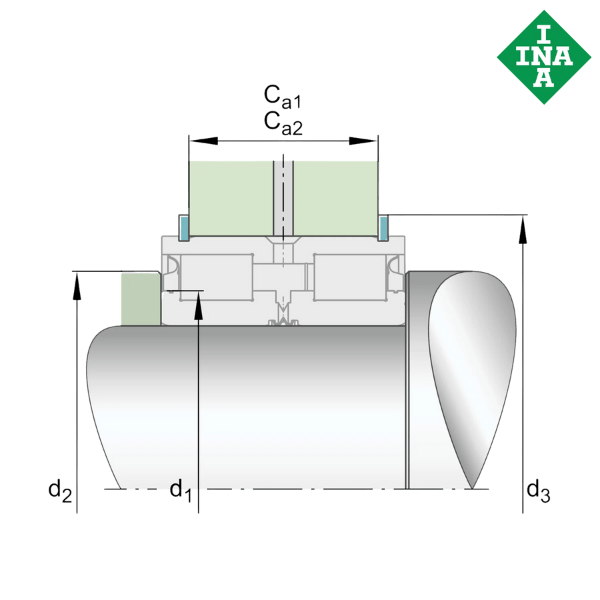

** Images are for representation purposes only
