Description
Brand - INA
Item Number - SL045004-PP-C3 INA
Also known as - 0017219920030 NNF5004ADA-2LSV/C3
EAN - 4012802209082
Inner (d) MM - 20
Outer (D) MM - 42
Width (B) MM - 30
Inner (d) Inch - 0.7874
Outer (D) Inch - 1.6535
Width (B) Inch - 1.1811
Weight (kg) - 0.188
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

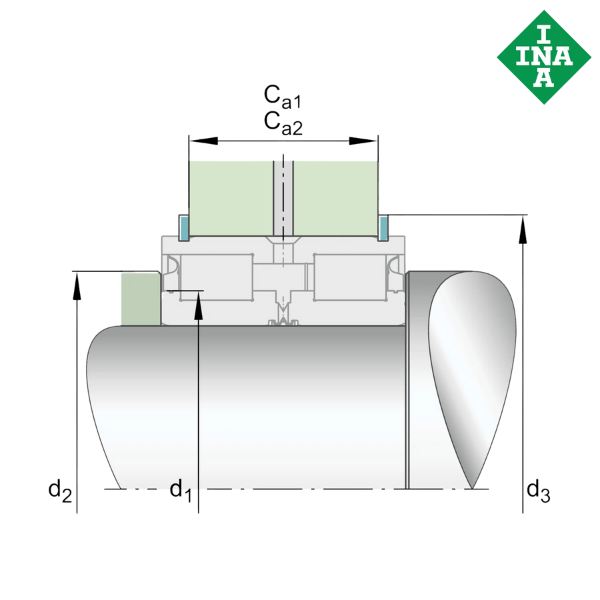

** Images are for representation purposes only
