Description
Brand - INA
Item Number - SL04140-PP-2NR-C5-L09 INA
Also known as - SL04140-PP-2NR-C5-L091
Category - Cylindrical Roller Bearing Double Row
Inner (d) MM - 140
Outer (D) MM - 200
Width (B) MM - 80
Inner (d) Inch - 5.5118
Outer (D) Inch - 7.874
Width (B) Inch - 3.1496
Weight (kg) - 8
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - 2R - 2 Snap Rings in O.D.
Radial Internal Play - C5 Internal Play (Higher than C4)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

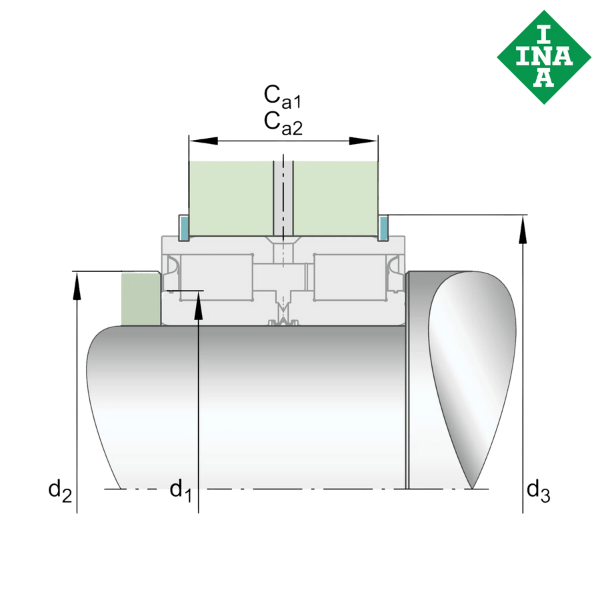

** Images are for representation purposes only
