Description
Brand - INA
Item Number - SL04-5040PP INA
Also known as - NNCF5040B-2LS-V
Category - Cylindrical Roller Bearing Double Row
Inner (d) MM - 200
Outer (D) MM - 310
Width (B) MM - 150
Inner (d) Inch - 7.874
Outer (D) Inch - 12.2047
Width (B) Inch - 5.9055
Weight (kg) - 42
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

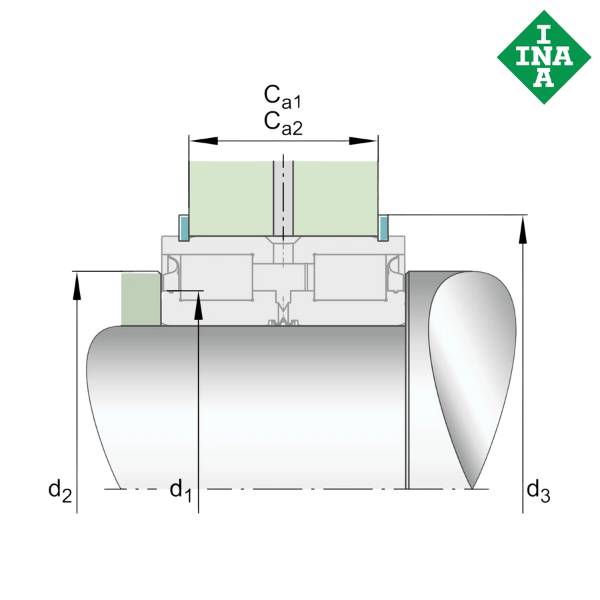

** Images are for representation purposes only
