Description
Brand - INA
Item Number - SL04-5028PP 2NR INA
Also known as - NNF5028ADA-2LSV NNF5028B.2LS.V
Category - Cylindrical Roller Bearing Double Row
Inner (d) MM - 140
Outer (D) MM - 210
Width (B) MM - 95
Inner (d) Inch - 5.5118
Outer (D) Inch - 8.2677
Width (B) Inch - 3.7402
Weight (kg) - 11
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - 2R - 2 Snap Rings in O.D.
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

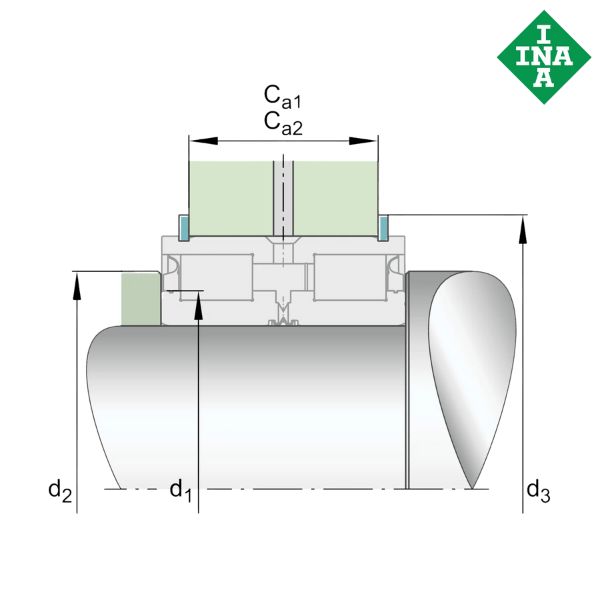

** Images are for representation purposes only
