Description
Brand - ZEN
Item Number - SKM9 ZEN
Category - Stainless Steel Nuts

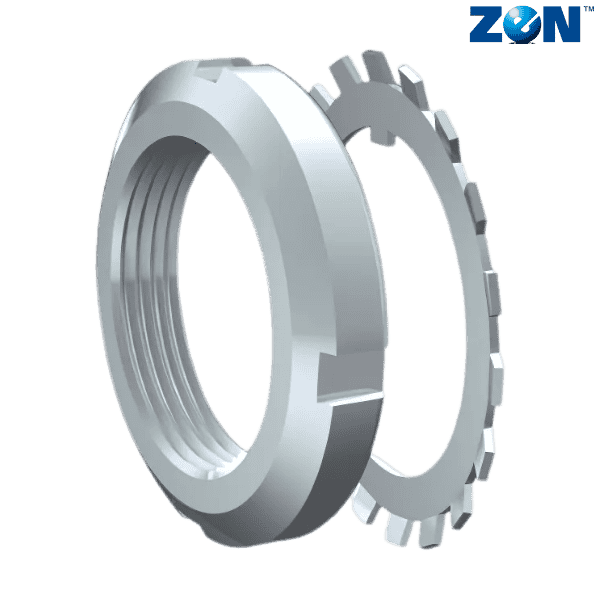

Compatible Locking washer - SMB9

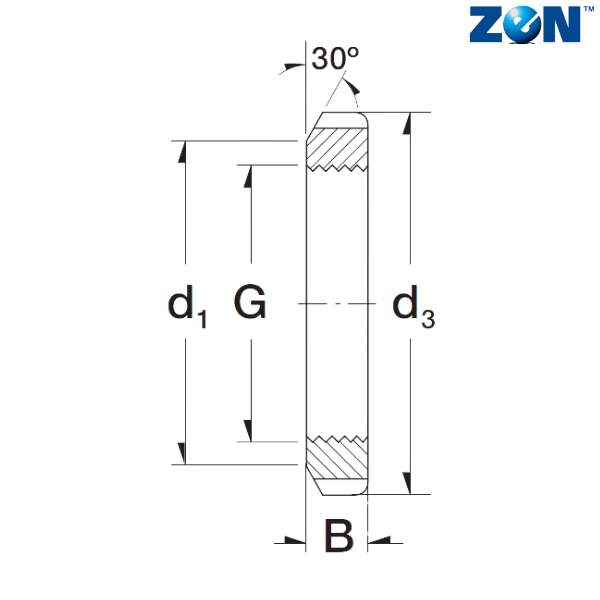

G - M 45 x 1.5
d1 (mm) - 56
d3 (mm) - 65
Width (B) mm - 10

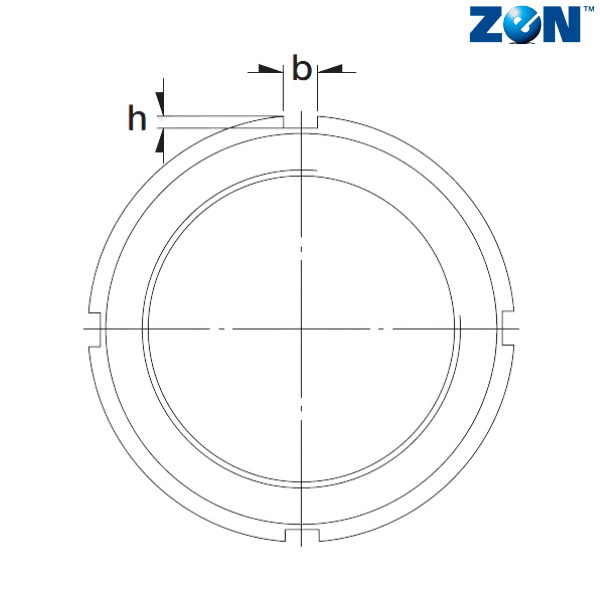

b (mm) - 6
h (mm) - 2.5
Material - AISI201
** Images are for representation purposes only
