Description
Brand - ZEN
Item Number - SKM17 ZEN
Category - Stainless Steel Nuts

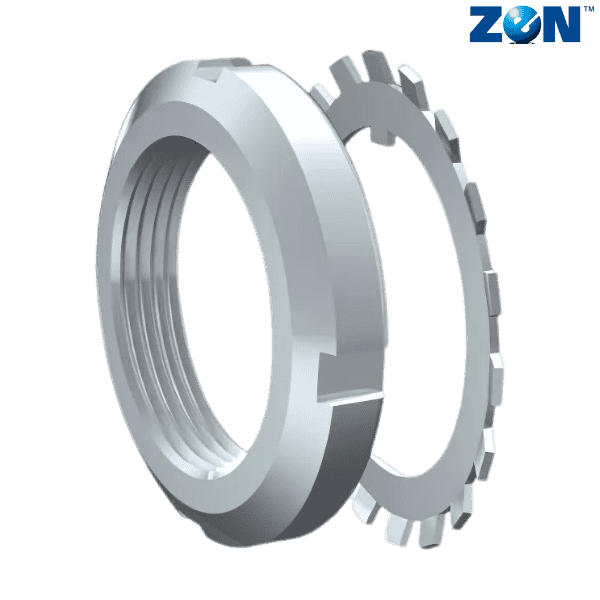

Compatible Locking washer - SMB17

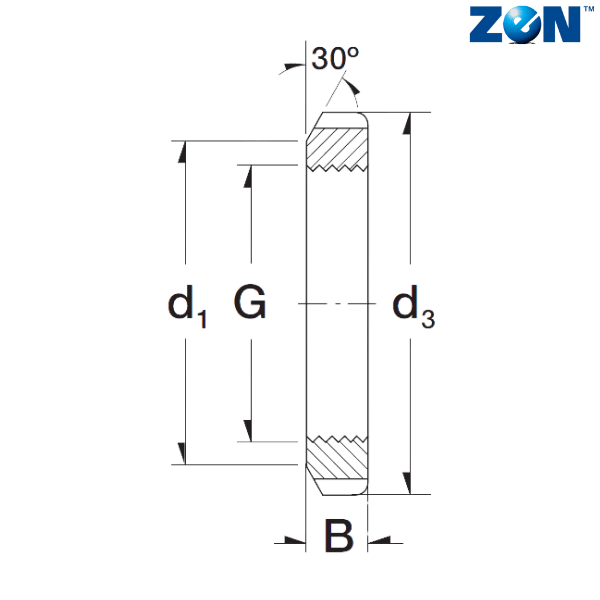

G - M 85 x 2
d1 (mm) - 102
d3 (mm) - 110
Width (B) mm - 16

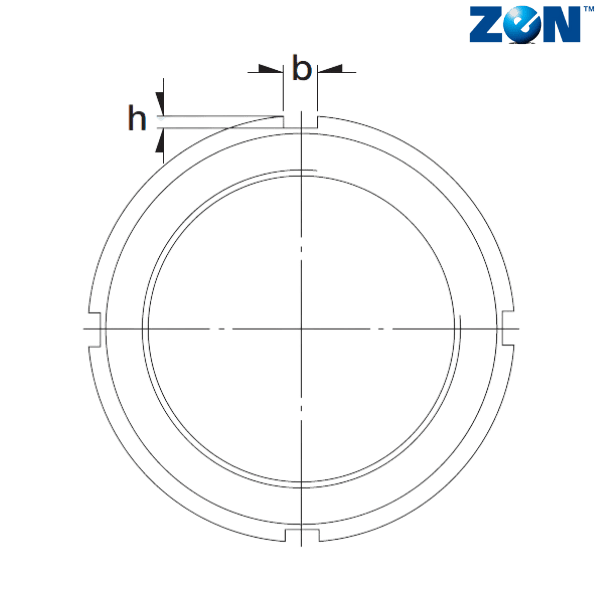

b (mm) - 8
h (mm) - 3.5
Material - AISI201
** Images are for representation purposes only
