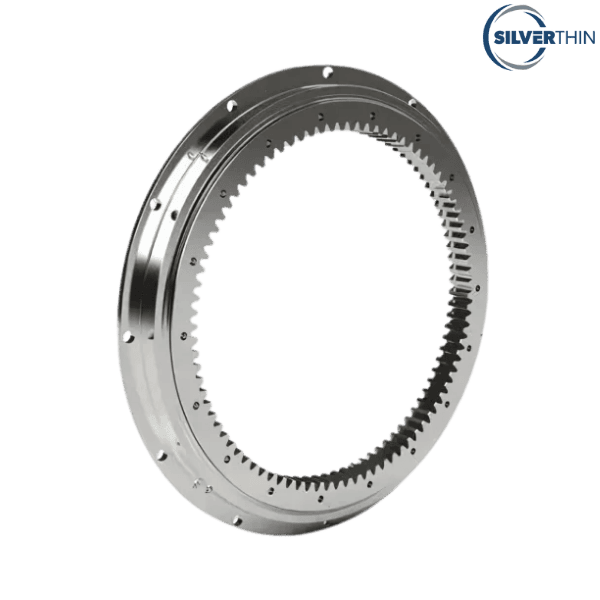

SK6-43NZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-43NZ SILVERTHIN
Category - Internal Gear Slewing Ring Bearing

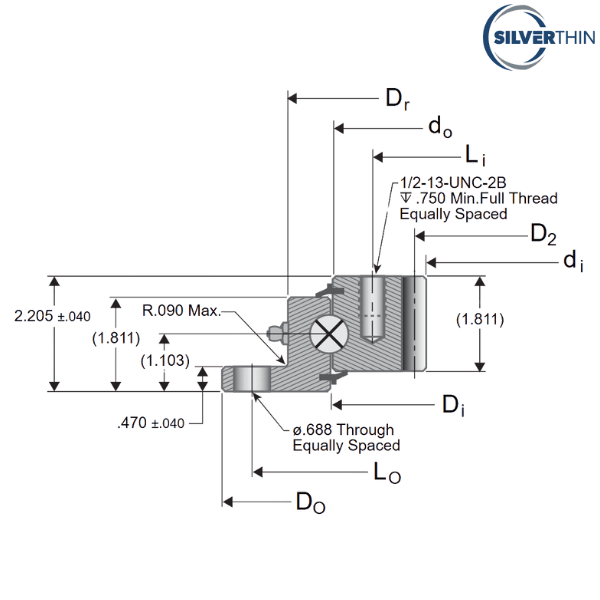

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 47.17 inch
Internal Diameter on Outer Ring (Di) - 43.071 inch
External Diameter on Outer Ring (Dr) - 44.65 inch
Inside Diameter of Inner Ring (di) - 39.133 inch
External Diameter on Inner Ring (do) - 42.992 inch
Pitch Diameter of Gear (D2) - 39.667 inch
Diametral Pitch (Pd) - 3 inch
Maximum Gear Tooth Load (F2) - 8340 lbs
Number of Teeth (Z2) - 119 pcs.
Inner Ring Bolt Circle (Li) - 41.5 inch
Inner Ring Hole Count - 24
Outer Ring Bolt Circle (Lo) - 46 inch
Outer Ring Hole Count - 18
Moment Rating - 74900 ft-lbs

Principal Dimensions & Load Ratings :
Approximate Weight - 85.26 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• Internal gear, AGMA 8 quality
• Double Sealed
• Internal clearance
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-43N9Z
AVON - 742 MB1
KAYDON - RK6-43N1Z

♦ ♦ Images are for representation purposes only
