SK6-37PZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-37PZ SILVERTHIN
Category - No Gear Slewing Ring Bearing

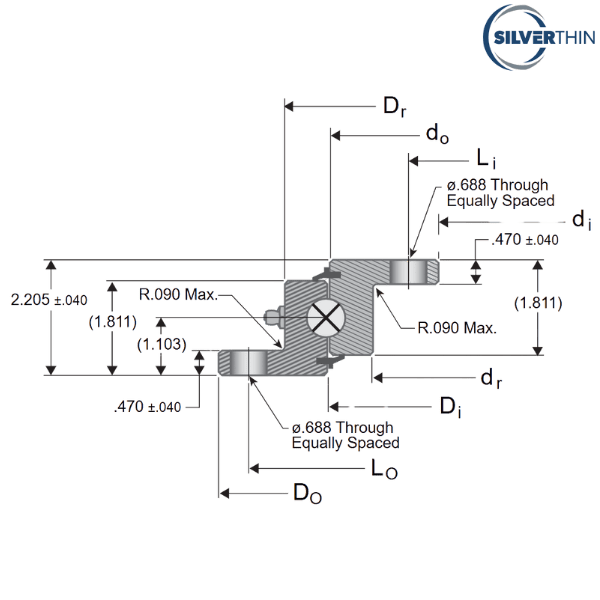

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 41.26 inch
Internal Diameter on Outer Ring (Di) - 37.09 inch
External Diameter on Outer Ring (Dr) - 38.74 inch
Inside Diameter of Inner Ring (di) - 32.84 inch
Internal Diameter on Inner Ring (dr) - 35.36 inch
External Diameter on Inner Ring (do) - 37.010 inch
Inner Ring Bolt Circle (Li) - 34 inch
Inner Ring Hole Count - 20
Outer Ring Bolt Circle (Lo) - 40.13 inch
Outer Ring Hole Count - 18
Moment Rating - 65000 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 59.86 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• Non-gear
• Double Sealed
• Internal clearance
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-37P9Z
AVON - 737 MC1
KAYDON - RK6-37P1Z

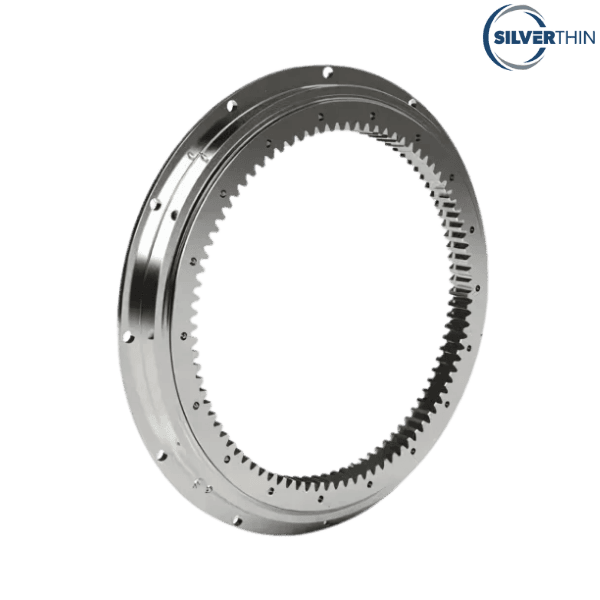

♦ ♦ Images are for representation purposes only
