SK6-37EZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-37EZ SILVERTHIN
Category - External Gear Slewing Ring Bearing

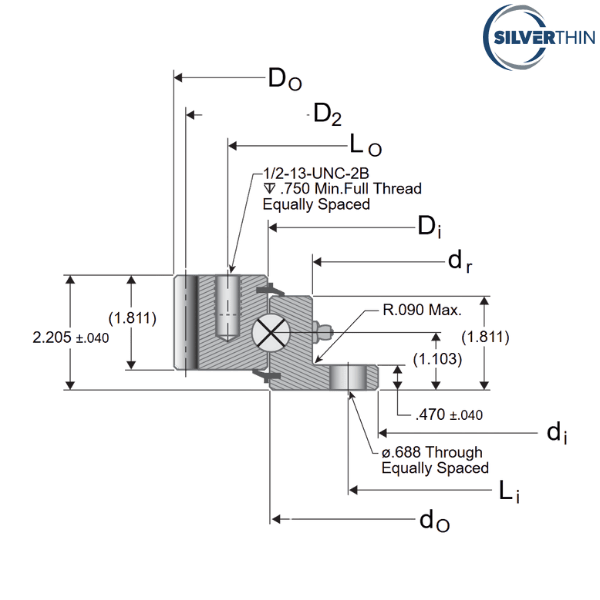

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 41.2 inch
Internal Diameter on Outer Ring (Di) - 37.09 inch
Inside Diameter of Inner Ring (di) - 32.84 inch
Internal Diameter on Inner Ring (dr) - 35.36 inch
External Diameter on Inner Ring (do) - 37.008 inch
Pitch Diameter of Gear (D2) - 40.667 inch
Diametral Pitch (Pd) - 3 inch
Maximum Gear Tooth Load (F2) - 7620 lbs
Number of Teeth (Z2) - 122 pcs.
Inner Ring Bolt Circle (Li) - 34 inch
Inner Ring Hole Count - 20
Outer Ring Bolt Circle (Lo) - 38.879 inch
Outer Ring Hole Count - 18
Moment Rating - 65000 ft-lbs

Principal Dimensions & Load Ratings :
Approximate Weight - 78 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• External gear, AGMA 8 quality
• Internal clearance
• Double Sealed
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-37E9Z
AVON - 737 MA1
KAYDON - RK6-37E1Z

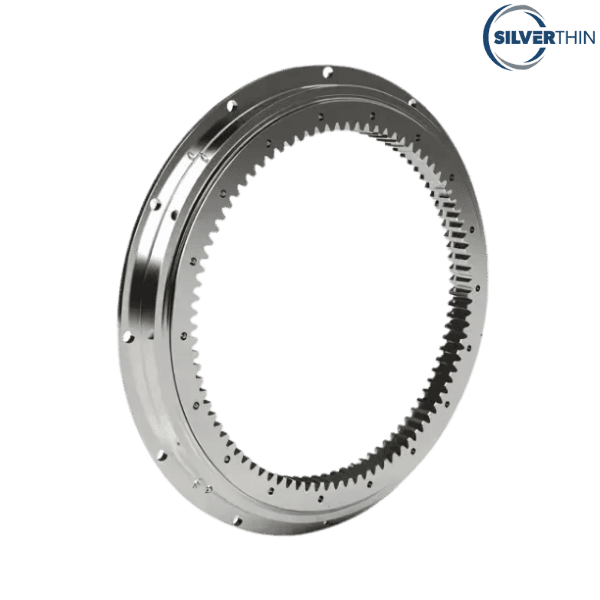

♦ ♦ Images are for representation purposes only
