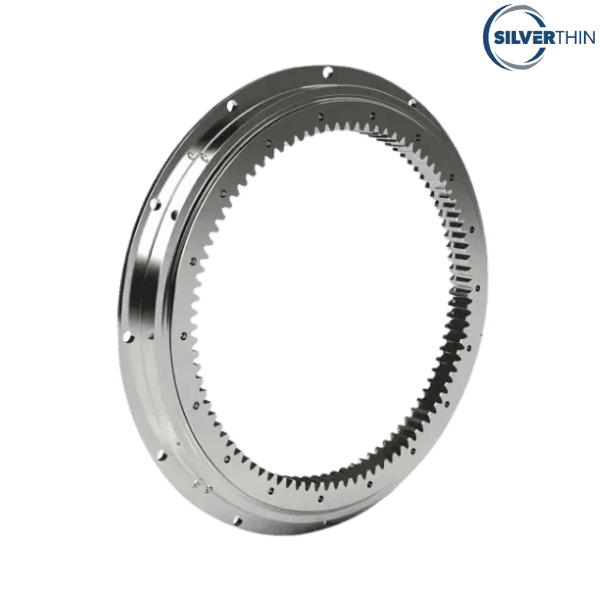

SK6-33PZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-33PZ SILVERTHIN
Category - No Gear Slewing Ring Bearing

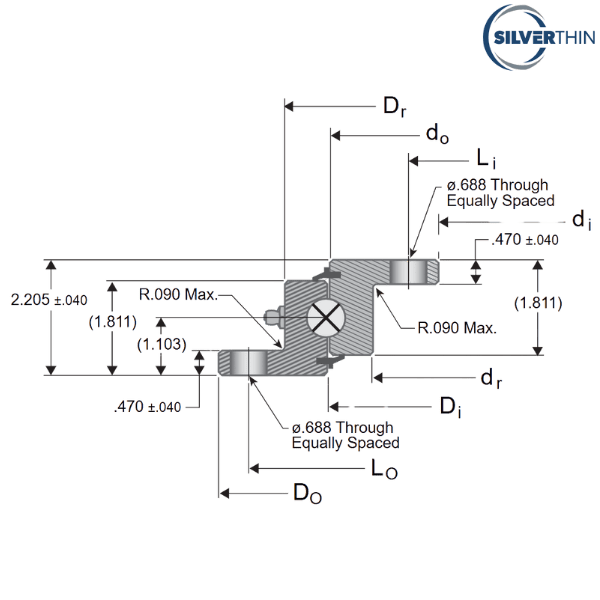

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 37.32 inch
Internal Diameter on Outer Ring (Di) - 33.15 inch
External Diameter on Outer Ring (Dr) - 34.8 inch
Inside Diameter of Inner Ring (di) - 28.9 inch
Internal Diameter on Inner Ring (dr) - 31.42 inch
External Diameter on Inner Ring (do) - 33.070 inch
Inner Ring Bolt Circle (Li) - 30 inch
Inner Ring Hole Count - 18
Outer Ring Bolt Circle (Lo) - 36.25 inch
Outer Ring Hole Count - 18
Moment Rating - 57400 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 53.51 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• Non-gear
• Double Sealed
• Internal clearance
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-33P9Z
AVON - 733 MC1
KAYDON - RK6-33P1Z
