SK6-29PZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-29PZ SILVERTHIN
Category - No Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 33.39 inch
Internal Diameter on Outer Ring (Di) - 29.212 inch
External Diameter on Outer Ring (Dr) - 30.87 inch
Inside Diameter of Inner Ring (di) - 24.97 inch
Internal Diameter on Inner Ring (dr) - 27.49 inch
External Diameter on Inner Ring (do) - 29.134 inch
Inner Ring Bolt Circle (Li) - 26.13 inch
Inner Ring Hole Count - 18
Outer Ring Bolt Circle (Lo) - 32.25 inch
Outer Ring Hole Count - 15
Moment Rating - 53100 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 47.17 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• Non-gear
• Double Sealed
• Internal clearance
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-29P9Z
AVON - 729 MC1
KAYDON - RK6-29P1Z

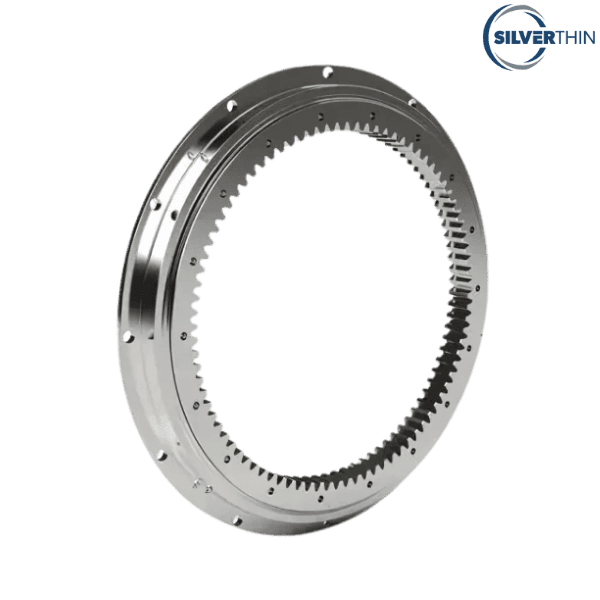

♦ ♦ Images are for representation purposes only
