SK6-29NZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-29NZ SILVERTHIN
Category - Internal Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 33.39 inch
Internal Diameter on Outer Ring (Di) - 29.213 inch
External Diameter on Outer Ring (Dr) - 30.87 inch
Inside Diameter of Inner Ring (di) - 25.6 inch
External Diameter on Inner Ring (do) - 29.134 inch
Pitch Diameter of Gear (D2) - 26 inch
Diametral Pitch (Pd) - 4 inch
Maximum Gear Tooth Load (F2) - 6300 lbs
Number of Teeth (Z2) - 104 pcs.
Inner Ring Bolt Circle (Li) - 27.63 inch
Inner Ring Hole Count - 18
Outer Ring Bolt Circle (Lo) - 32.25 inch
Outer Ring Hole Count - 15
Moment Rating - 53100 ft-lbs

Principal Dimensions & Load Ratings :
Approximate Weight - 54.88 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• Internal gear, AGMA 8 quality
• Double Sealed
• Internal clearance
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-29N9Z
AVON - 729 MB1
KAYDON - RK6-29N1Z

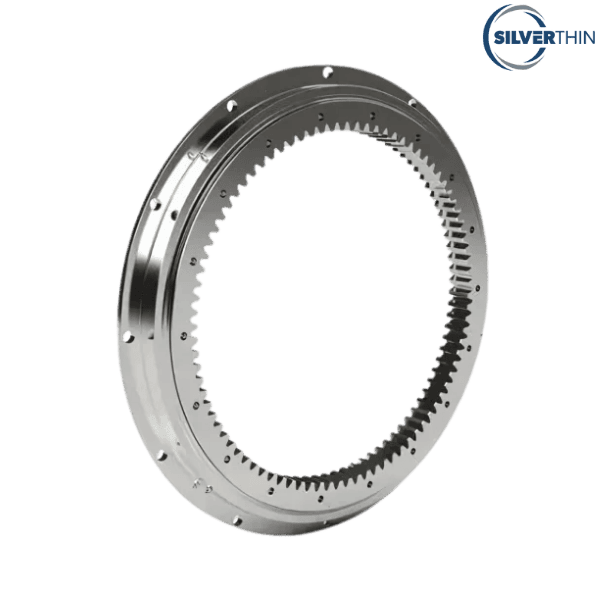

♦ ♦ Images are for representation purposes only
