SK6-25PZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-25PZ SILVERTHIN
Category - No Gear Slewing Ring Bearing

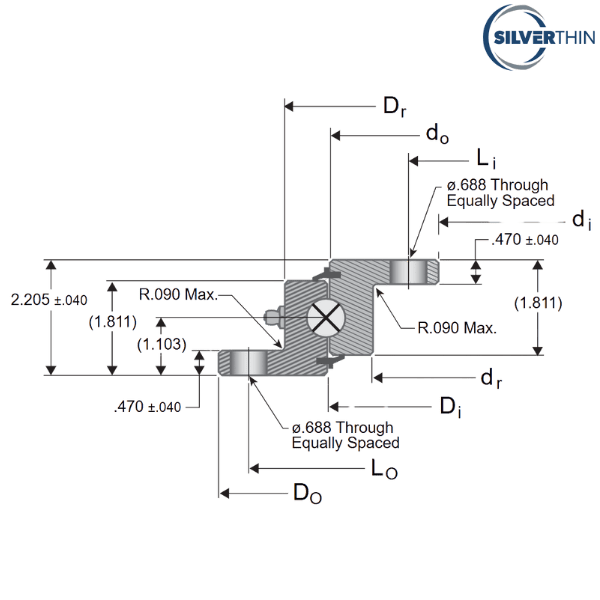

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 29.45 inch
Internal Diameter on Outer Ring (Di) - 25.28 inch
External Diameter on Outer Ring (Dr) - 26.93 inch
Inside Diameter of Inner Ring (di) - 21.03 inch
Internal Diameter on Inner Ring (dr) - 23.55 inch
External Diameter on Inner Ring (do) - 25.200 inch
Inner Ring Bolt Circle (Li) - 22.13 inch
Inner Ring Hole Count - 18
Outer Ring Bolt Circle (Lo) - 28.38 inch
Outer Ring Hole Count - 12
Moment Rating - 50150 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 40.36 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• Non-gear
• Double Sealed
• Internal clearance
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-25P9Z
AVON - 725 MC1
KAYDON - RK6-25P1Z

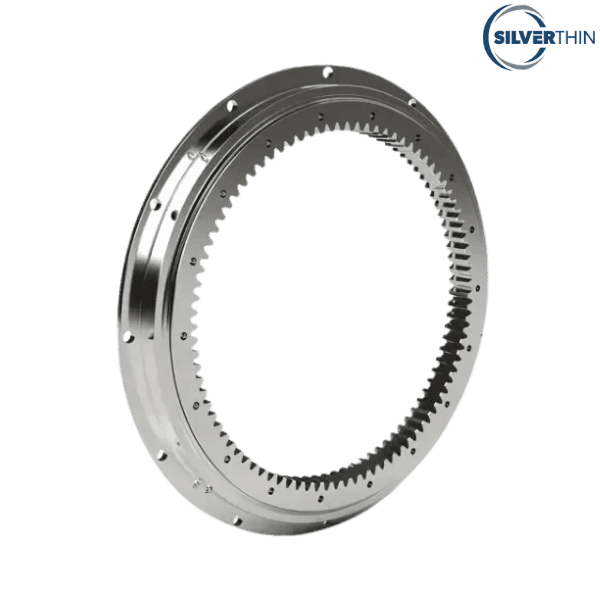

♦ ♦ Images are for representation purposes only
