SK6-25NZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-25NZ SILVERTHIN

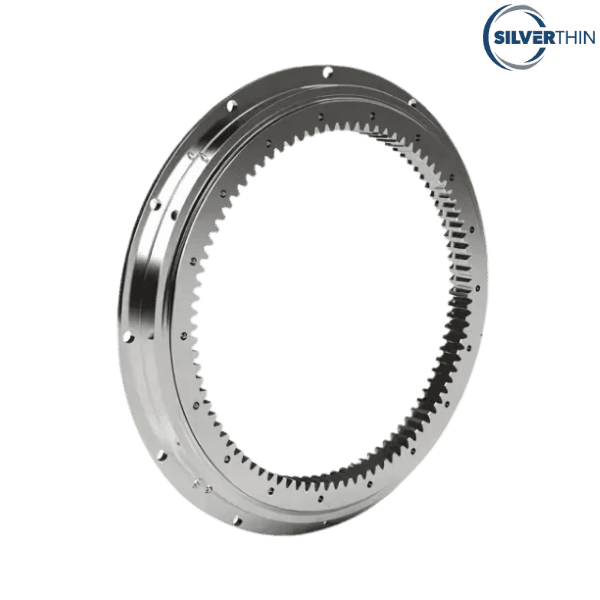

Category - Internal Gear Slewing Ring Bearing

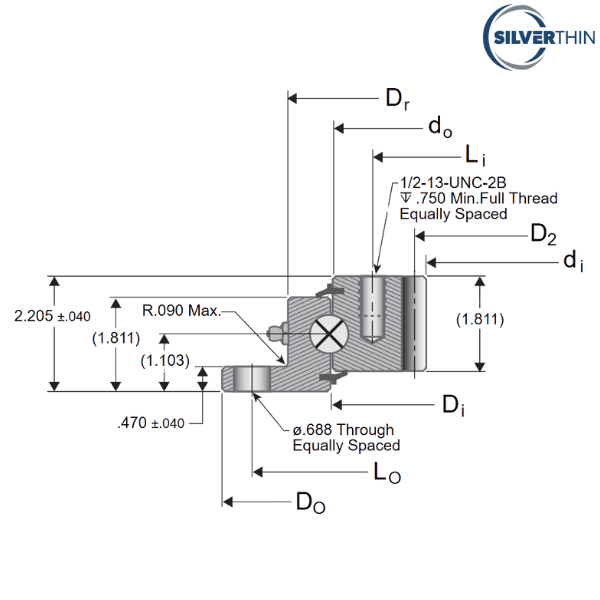

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 29.45 inch
Internal Diameter on Outer Ring (Di) - 25.28 inch
External Diameter on Outer Ring (Dr) - 26.93 inch
Inside Diameter of Inner Ring (di) - 21.6 inch
External Diameter on Inner Ring (do) - 25.2 inch
Pitch Diameter of Gear (D2) - 22 inch
Diametral Pitch (Pd) - 4 inch
Maximum Gear Tooth Load (F2) - 6400 lbs
Number of Teeth (Z2) - 88 pcs.
Inner Ring Bolt Circle (Li) - 23.63 inch
Inner Ring Hole Count - 18
Outer Ring Bolt Circle (Lo) - 28.38 inch
Outer Ring Hole Count - 12
Moment Rating - 50150 ft-lbs

Principal Dimensions & Load Ratings :
Approximate Weight - 48.07 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• Internal gear, AGMA 8 quality
• Double Sealed
• Internal clearance
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-25N9Z
AVON - 725 MB1
KAYDON - RK6-25N1Z

♦ ♦ Images are for representation purposes only
