SK6-25EZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-25EZ SILVERTHIN
Category - External Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 29.15 inch
Internal Diameter on Outer Ring (Di) - 25.28 inch
Inside Diameter of Inner Ring (di) - 21.03 inch
Internal Diameter on Inner Ring (dr) - 23.55 inch
External Diameter on Inner Ring (do) - 25.2 inch
Pitch Diameter of Gear (D2) - 28.75 inch
Diametral Pitch (Pd) - 4 inch
Maximum Gear Tooth Load (F2) - 5700 lbs
Number of Teeth (Z2) - 115 pcs.
Inner Ring Bolt Circle (Li) - 22.13 inch
Inner Ring Hole Count - 18
Outer Ring Bolt Circle (Lo) - 27.25 inch
Outer Ring Hole Count - 15
Moment Rating - 50150 ft-lbs

Principal Dimensions & Load Ratings :
Approximate Weight - 52.15 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• External gear, AGMA 8 quality
• Internal clearance
• Double Sealed
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-25E9Z
AVON - 725 MA1
KAYDON - RK6-25E1Z

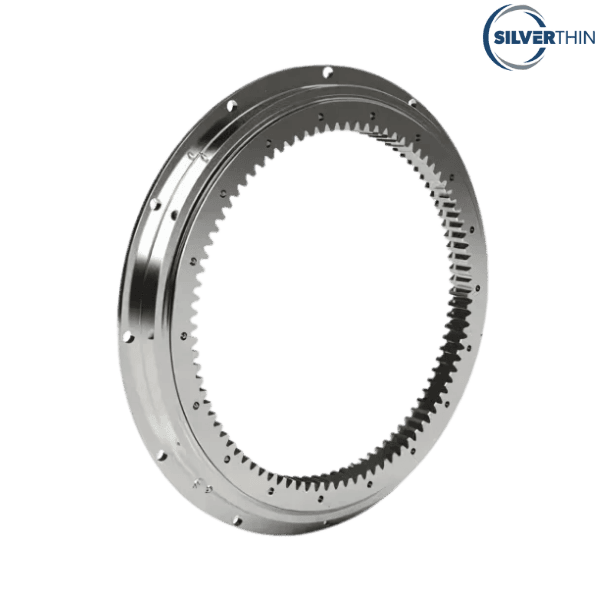

♦ ♦ Images are for representation purposes only
