SK6-22PZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-22PZ SILVERTHIN
Category - No Gear Slewing Ring Bearing

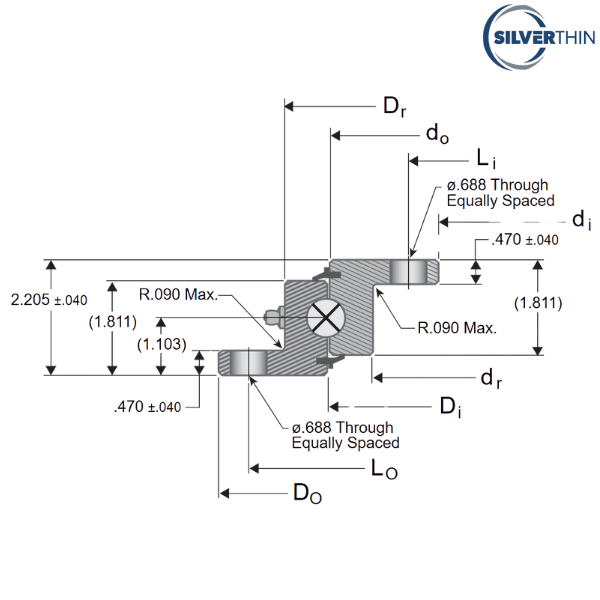

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 25.51 inch
Internal Diameter on Outer Ring (Di) - 21.34 inch
External Diameter on Outer Ring (Dr) - 22.99 inch
Inside Diameter of Inner Ring (di) - 17.09 inch
Internal Diameter on Inner Ring (dr) - 19.61 inch
External Diameter on Inner Ring (do) - 21.260 inch
Inner Ring Bolt Circle (Li) - 18.13 inch
Inner Ring Hole Count - 15
Outer Ring Bolt Circle (Lo) - 24.38 inch
Outer Ring Hole Count - 12
Moment Rating - 33630 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 34.47 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• Non-gear
• Double Sealed
• Internal clearance
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-22P9Z
AVON - 721 MC1
KAYDON - RK6-22P1Z

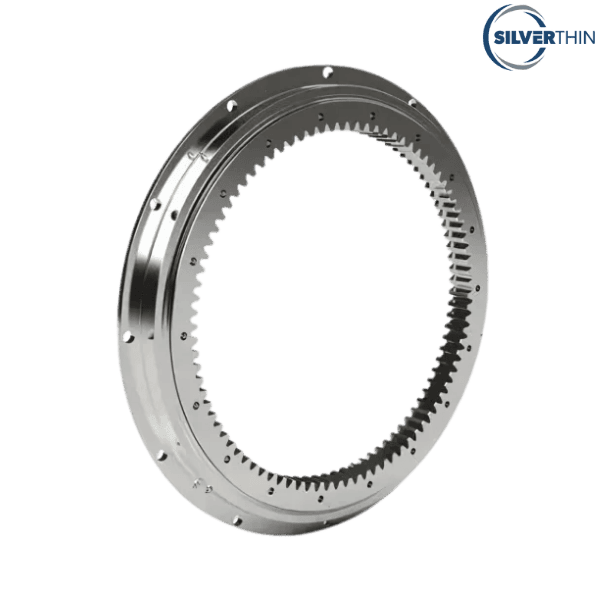

♦ ♦ Images are for representation purposes only
