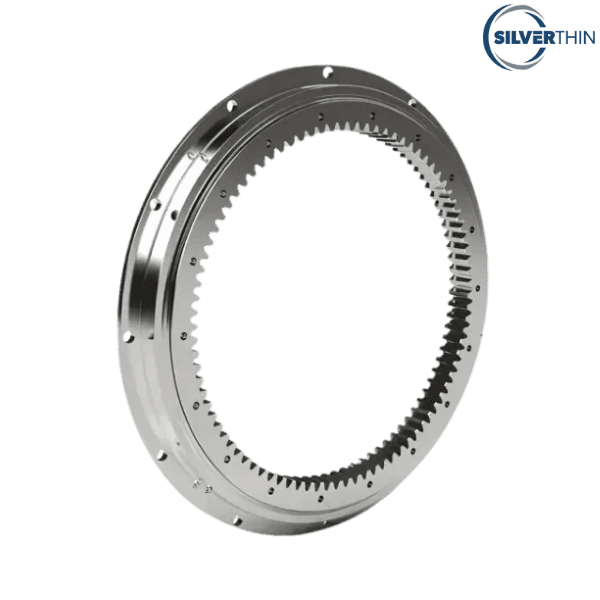

SK6-22NZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-22NZ SILVERTHIN
Category - Internal Gear Slewing Ring Bearing

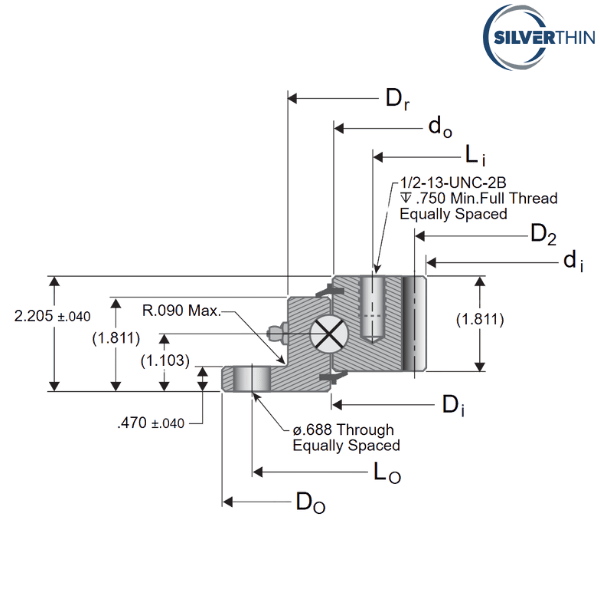

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 25.51 inch
Internal Diameter on Outer Ring (Di) - 21.34 inch
External Diameter on Outer Ring (Dr) - 22.99 inch
Inside Diameter of Inner Ring (di) - 17.6 inch
External Diameter on Inner Ring (do) - 21.26 inch
Pitch Diameter of Gear (D2) - 18 inch
Diametral Pitch (Pd) - 4 inch
Maximum Gear Tooth Load (F2) - 6530 lbs
Number of Teeth (Z2) - 72 pcs.
Inner Ring Bolt Circle (Li) - 19.63 inch
Inner Ring Hole Count - 15
Outer Ring Bolt Circle (Lo) - 24.38 inch
Outer Ring Hole Count - 10
Moment Rating - 33630 ft-lbs

Principal Dimensions & Load Ratings :
Approximate Weight - 40.82 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• Internal gear, AGMA 8 quality
• Double Sealed
• Internal clearance
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-22N9Z
AVON - 721 MB1
KAYDON - RK6-22N1Z

♦ ♦ Images are for representation purposes only
