SK6-22EZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-22EZ SILVERTHIN
Category - External Gear Slewing Ring Bearing

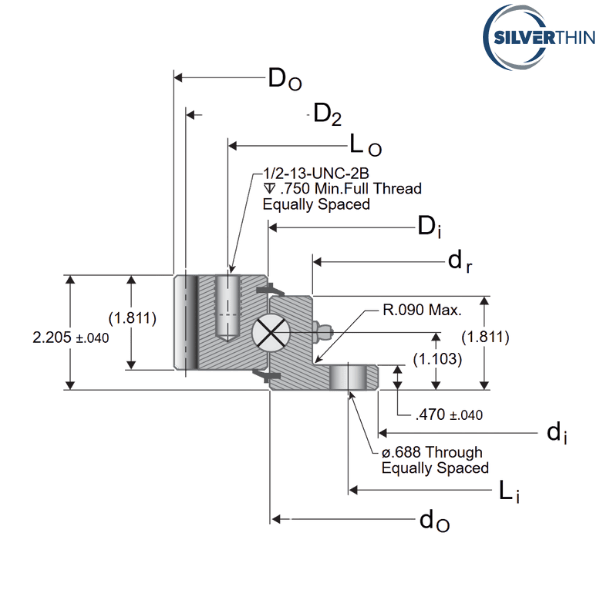

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 25.15 inch
Internal Diameter on Outer Ring (Di) - 21.34 inch
Inside Diameter of Inner Ring (di) - 17.09 inch
Internal Diameter on Inner Ring (dr) - 19.61 inch
External Diameter on Inner Ring (do) - 21.26 inch
Pitch Diameter of Gear (D2) - 24.75 inch
Diametral Pitch (Pd) - 4 inch
Maximum Gear Tooth Load (F2) - 5650 lbs
Number of Teeth (Z2) - 99 pcs.
Inner Ring Bolt Circle (Li) - 18.13 inch
Inner Ring Hole Count - 15
Outer Ring Bolt Circle (Lo) - 23.25 inch
Outer Ring Hole Count - 12
Moment Rating - 33630 ft-lbs

Principal Dimensions & Load Ratings :
Approximate Weight - 43.54 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• External gear, AGMA 8 quality
• Internal clearance
• Double Sealed
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-22E9Z
AVON - 721 MA1
KAYDON - RK6-22E1Z

♦ ♦ Images are for representation purposes only
