SK6-16NZ SILVERTHIN

Brand - SILVERTHIN
Item Number - SK6-16NZ SILVERTHIN
Category - Internal Gear Slewing Ring Bearing

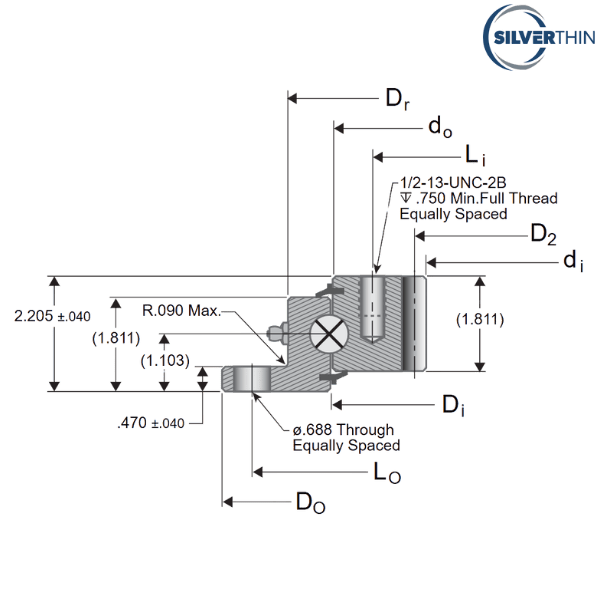

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 20.39 inch
Internal Diameter on Outer Ring (Di) - 16.339 inch
External Diameter on Outer Ring (Dr) - 17.87 inch
Inside Diameter of Inner Ring (di) - 12.85 inch
External Diameter on Inner Ring (do) - 16.26 inch
Pitch Diameter of Gear (D2) - 13.25 inch
Diametral Pitch (Pd) - 4 inch
Maximum Gear Tooth Load (F2) - 6800 lbs
Number of Teeth (Z2) - 53 pcs.
Inner Ring Bolt Circle (Li) - 14.88 inch
Inner Ring Hole Count - 12
Outer Ring Bolt Circle (Lo) - 19.25 inch
Outer Ring Hole Count - 8
Moment Rating - 23300 ft-lbs

Principal Dimensions & Load Ratings :
Approximate Weight - 29.48 kg

Other salient points to be noted :
• Four-point contact ball
• Flanged cross-section on non-geared rings
• Internal gear, AGMA 8 quality
• Double Sealed
• Internal clearance
• Dimensions up to 60” OD

Interchange :
ROTEK - L6-16N9Z
AVON - 716 MB1
KAYDON - RK6-16N1Z

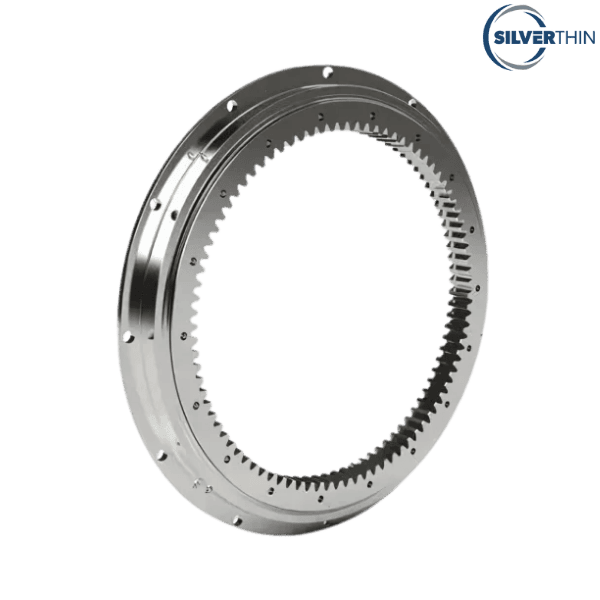

♦ ♦ Images are for representation purposes only
