Description
Brand - ZEN
Item Number - SK40 ZEN
Category - Linear Shaft Support SK Series
Shaft Diameter (mm) - Ø40
h (mm) - 60
A (mm) - 57
W (mm) - 114
H (mm) - 96
T (mm) - 15
E (mm) - 60
D (mm) - 12
C (mm) - 90
B (mm) - 36
S (mm) - Ø11
J - M8
Approximate Weight (kg) - 0.42

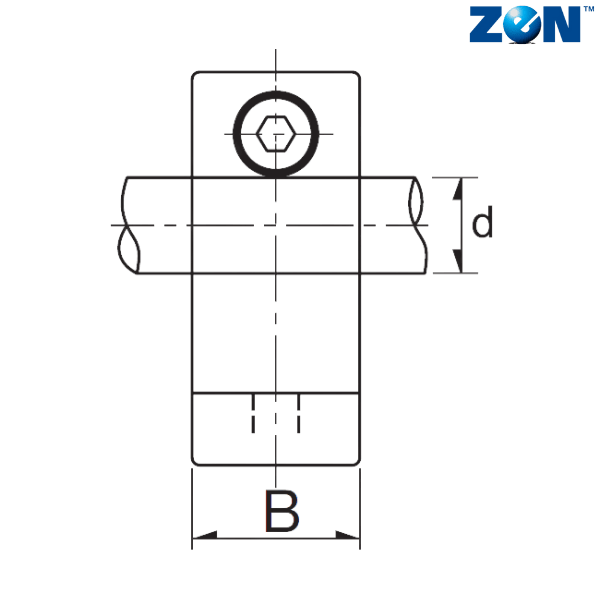

** Images are for representation purposes only
