Description
Brand - ZEN
Item Number - SK35 ZEN
Category - Linear Shaft Support SK Series
Shaft Diameter (mm) - Ø35
h (mm) - 50
A (mm) - 49
W (mm) - 98
H (mm) - 85
T (mm) - 15
E (mm) - 50
D (mm) - 12
C (mm) - 74
B (mm) - 32
S (mm) - Ø11
J - M8
Approximate Weight (kg) - 0.27

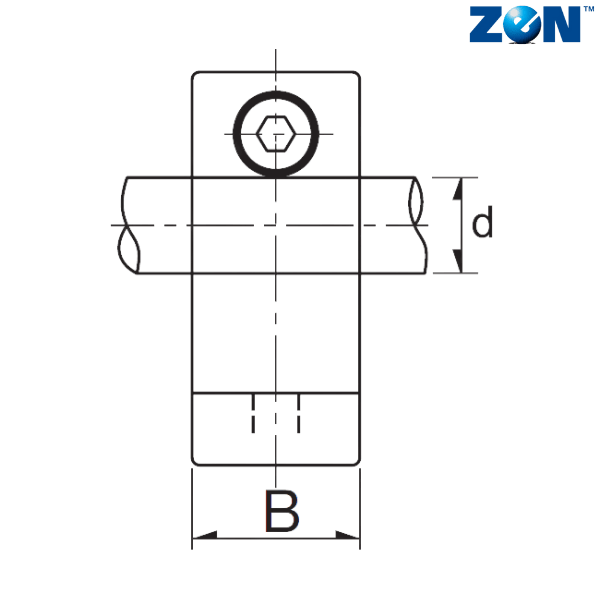

** Images are for representation purposes only
