Description
Brand - ZEN
Item Number - SK30 ZEN

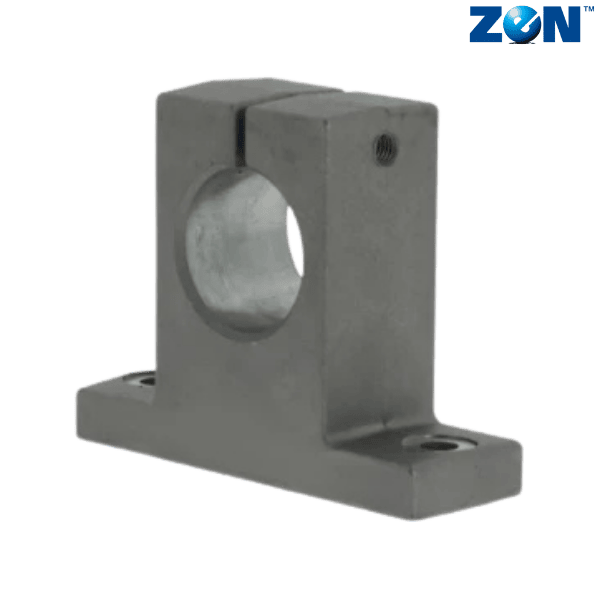

Category - Aluminium Pillow Blocks (SK)
Shaft Diameter (mm) - 30
H (mm) - 42
E (mm) - 42
W (mm) - 84
L (mm) - 28
F (mm) - 70
G (mm) - 12
P (mm) - 44
B (mm) - 64
S (mm) - 9
Clamping Bolt - M6
Mounting Bolt - M8
Weight (kg) - 0.18
Material - 6063 Aluminum Alloy-T6
** Images are for representation purposes only
