Description

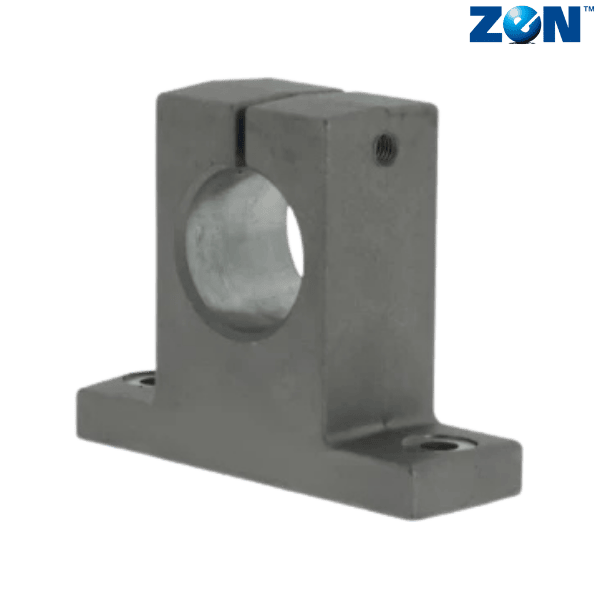

Brand - ZEN
Item Number - SK25 ZEN
Category - Aluminium Pillow Blocks (SK)
Shaft Diameter (mm) - 25
H (mm) - 35
E (mm) - 35
W (mm) - 70
L (mm) - 24
F (mm) - 60
G (mm) - 12
P (mm) - 38
B (mm) - 56
S (mm) - 6
Clamping Bolt - M6
Mounting Bolt - M6
Weight (kg) - 0.13
Material - 6063 Aluminum Alloy-T6
** Images are for representation purposes only
